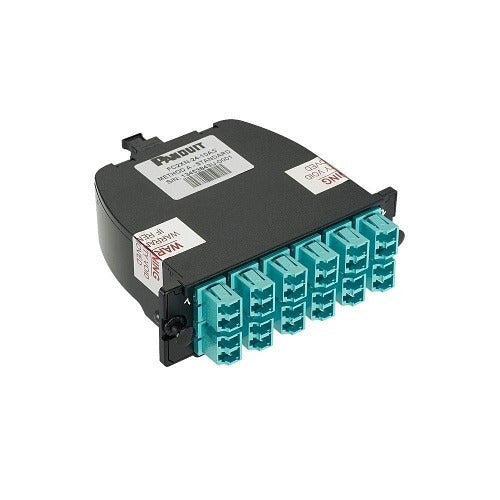

Panduit FC2ZN-24-10U OM4 Fiber Optic Cassette 24 Port

Product Description

The PANDUIT FC2ZN-24-10U is an OM4 multimode fiber optic cassette designed for structured cabling installations in data centers, enterprise networks, and telecommunications rooms. It delivers standard-loss performance across 24 fiber connections, providing a pre-terminated, plug-and-play solution that simplifies high-density fiber distribution. The cassette format allows technicians to pre-test and pre-certify connections before deployment, reducing on-site installation time and minimizing the risk of field-termination errors. Licensed low-voltage and structured cabling technicians are the typical installers for this type of hardware.

This cassette is suited for high-density patch panel enclosures and fiber distribution units in both commercial and enterprise environments. The 24-port configuration supports backbone and horizontal OM4 multimode cabling runs where standardized loss budgets are required. It is commonly deployed in modular rack-mount enclosures as part of a scalable, zone-based fiber architecture.

Key Features

• OM4 multimode fiber for high-bandwidth applications
• Standard-loss performance for predictable link budgets
• 24-port configuration in a compact cassette form factor
• Pre-terminated design reduces field splicing and termination labor
• Compatible with modular fiber enclosure systems

Compatibility

Designed as an OEM-style replacement and standard fitment cassette for modular rack-mount fiber enclosures accepting pre-terminated OM4 multimode cassette modules.

Installation Notes

Installation should be performed by a qualified low-voltage or structured cabling technician familiar with fiber handling best practices. De-energize and disconnect any active transceivers before inserting or removing the cassette. Use appropriate fiber cleaning tools and inspection scopes on all connectors prior to mating. Follow TIA-568 and applicable local codes for fiber pathway and space requirements.
