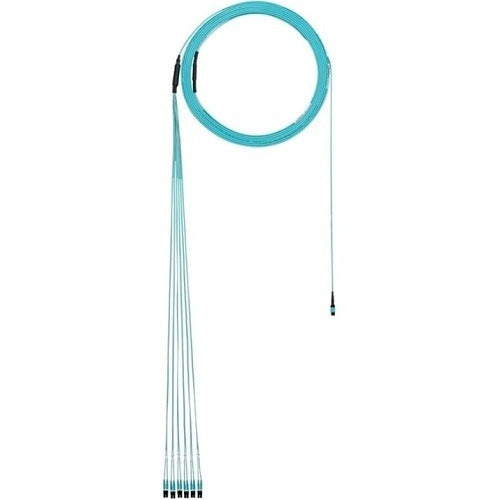

Panduit F9TYL5EL2SAM045 OS2 12-fiber Trunk Cable

Product Description

The PANDUIT F9TYL5EL2SAM045 is a pre-terminated OS2 single-mode fiber optic trunk cable assembly designed for high-density structured cabling installations. It features a 12-fiber configuration with an MPO female connector on one end and LC duplex connectors on the other, making it suited for backbone and horizontal distribution runs in data centers, enterprise networks, and telecom rooms. The Low Smoke Zero Halogen (LSZH) jacket reduces toxic gas and smoke emission in the event of fire, meeting requirements for plenum-adjacent or enclosed pathway installations where halogen-free materials are specified.

This trunk cable assembly is used in structured cabling deployments where pre-terminated solutions are preferred to reduce on-site termination labor and error. Typical applications include connecting MPO-based fiber distribution units or cassettes to active equipment ports via LC duplex patch connections. It is installed by low-voltage cabling technicians, network infrastructure specialists, and licensed data communications contractors in commercial and enterprise environments.

Key Features

• OS2 single-mode fiber for long-reach, low-loss transmission
• 12-fiber count supports high-density port aggregation
• MPO female to LC duplex breakout configuration for cassette-based distribution
• LSZH jacket meets halogen-free requirements for enclosed or sensitive environments
• Pre-terminated assembly reduces field termination time and variability

Compatibility

Designed as an OEM-style pre-terminated trunk assembly compatible with MPO-based fiber distribution cassettes and LC duplex ports in OS2 single-mode structured cabling systems.

Installation Notes

Installation should be performed by qualified low-voltage or data cabling technicians following TIA-568 and ISO 11801 structured cabling standards. De-energize or power down active equipment before connecting or disconnecting fiber assemblies. Avoid bending the cable beyond its minimum bend radius and protect MPO and LC ferrules with dust caps when not in use. Inspect all connectors for contamination and clean per industry standard procedures before mating.
