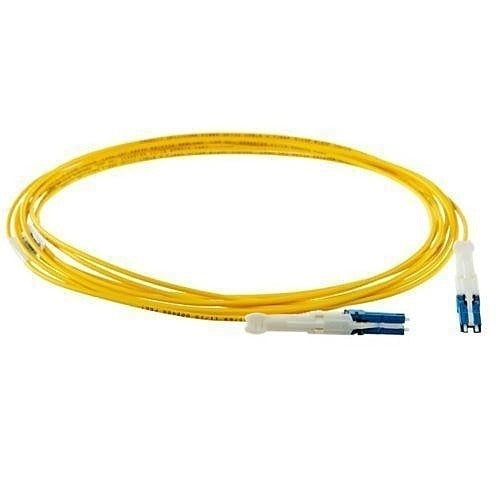

Panduit F92RPZNZNONF024 OS2 Fiber Patch Cable Cs Connector

Product Description

The PANDUIT F92RPZNZNONF024 is an OS2 single-mode fiber optic patch cable designed for structured cabling and network infrastructure installations. Built with a 2-fiber, 2mm jacketed construction and rated OFNP (Optical Fiber Nonconductive Plenum), this cable meets the requirements for plenum-space routing where fire and smoke propagation ratings are mandated by building and fire codes. The CS connector interface on both ends supports high-density fiber distribution in data centers, telecommunications rooms, and enterprise network environments. Licensed low-voltage technicians and structured cabling installers are the primary trades that work with this assembly.

This patch cable is suited for OS2 single-mode fiber optic systems in commercial and enterprise environments. Its plenum-rated jacket makes it appropriate for installation in air-handling spaces such as above drop ceilings and in raised-floor data center environments where NEC Article 770 plenum requirements apply. The CS connector format targets high-density patch panels and active equipment ports that require a small-form-factor fiber interface. It ships as a single assembly and is intended for direct connection between fiber distribution hardware and active network equipment.

Key Features

• OS2 single-mode fiber type for long-distance, low-attenuation signal transmission
• 2-fiber construction with 2mm jacket diameter for flexible routing in tight pathways
• OFNP plenum rating meets NEC Article 770 requirements for air-handling spaces
• CS connector on both ends supports high-density fiber panel and equipment connections
• Pre-terminated factory assembly for consistent end-face quality and repeatable insertion loss

Compatibility

Designed as an OEM-style patch assembly for OS2 single-mode fiber optic systems using CS connector interfaces in structured cabling and data center environments.

Installation Notes

Installation should be performed by a qualified low-voltage or structured cabling technician familiar with fiber optic handling procedures. De-energize or power down active ports before mating or un-mating fiber connectors to prevent exposure to laser light sources. Inspect and clean connector end-faces with an approved fiber optic cleaning tool prior to insertion. Observe minimum bend radius requirements for the cable jacket to avoid signal degradation or physical damage to the fiber strand.
