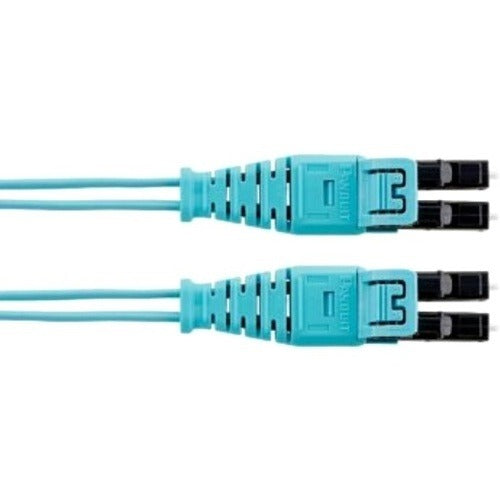

Panduit F92ERQ1Q1SNM018 OS2 Fiber Patch Cable 2F Ofnr

Product Description

The PANDUIT F92ERQ1Q1SNM018 is an OS2 single-mode fiber optic patch cable designed for structured cabling installations in commercial and enterprise environments. Built with a 2-fiber configuration and a 1.6mm diameter cable jacket, this patch cable features polished PC (Physical Contact) connectors and an OFNR (Optical Fiber Nonconductive Riser) rated jacket. The push-pull connector design allows for tool-free insertion and removal in high-density panels and equipment bays, reducing the risk of accidental disconnection during cable management. Licensed low-voltage and data cabling technicians are the primary installers of this product.

This patch cable is suited for backbone and horizontal runs within riser-rated vertical pathways, data centers, telecom rooms, and enterprise LAN closets. The OS2 single-mode designation makes it appropriate for long-distance, high-bandwidth applications where signal integrity over extended runs is required. The OFNR rating qualifies it for use between floors in commercial buildings where riser-rated cabling is required by code. It ships as a single unit (EA) and is categorized under hardware accessories.

Key Features

• OS2 single-mode fiber for long-distance, low-attenuation signal transmission
• 2-fiber configuration in a compact 1.6mm jacket for high-density routing
• PC (Physical Contact) polished connectors for reliable low-loss termination
• OFNR-rated jacket meets riser fire rating requirements for between-floor installations
• Push-pull connector design enables fast, tool-free insertion and extraction in dense patch environments

Compatibility

Designed as an OEM-style patch cable for use with OS2 single-mode fiber optic panels, switches, and equipment ports accepting compatible push-pull style connectors in riser-rated cabling installations.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician familiar with fiber optic handling practices and applicable codes including ANSI/TIA-568 and local building codes governing riser-rated cabling. De-energize or power down connected equipment before patching fiber ports where possible. Avoid bending the cable beyond its minimum bend radius, and do not apply excessive pull tension during routing. Inspect and clean fiber end-faces before mating connectors to prevent contamination-related signal loss.
