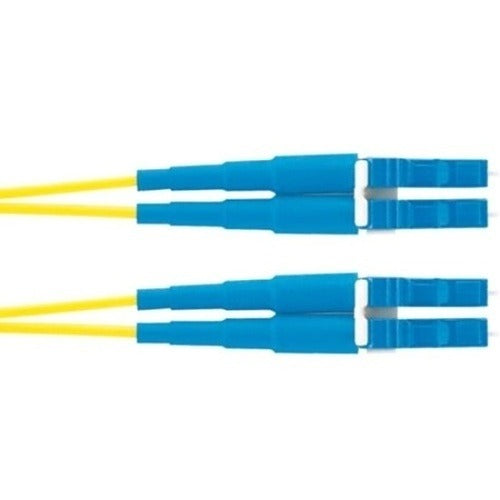

Panduit F92ERLNLNSNM036 OS2 Lc Duplex Fiber Patch Cable

Product Description

The PANDUIT F92ERLNLNSNM036 is a singlemode OS2 duplex fiber optic patch cable terminated with LC connectors on both ends. Designed for low-loss, high-bandwidth data transmission, this cable uses a 1.6 mm diameter duplex cordage construction and PC (physical contact) polish on both connector endfaces. The OFNR (optical fiber nonconductive riser) rating qualifies it for riser-rated vertical runs between floors in commercial and industrial structured cabling installations. Network technicians and low-voltage cabling professionals install this type of cable to interconnect switches, routers, patch panels, and optical transceivers in enterprise and data center environments.

This patch cable is suited for singlemode fiber backbone and horizontal runs in commercial buildings, data centers, and telecommunications rooms. The OS2 specification supports long-distance transmission at 9/125 micrometer fiber geometry, making it appropriate for high-density structured cabling systems where signal integrity over extended distances is required. The duplex LC configuration is standard for bidirectional transceiver connections on SFP and SFP+ ports commonly found in enterprise switching and routing equipment.

Key Features

• OS2 singlemode fiber for long-distance, high-bandwidth optical transmission
• LC duplex connectors on both ends for bidirectional transceiver compatibility
• PC polish endface reduces back-reflection at connector interface
• 1.6 mm duplex cordage construction for flexible, low-profile routing
• OFNR-rated jacket approved for riser installations per NEC Article 770
• 36-meter cable length for medium to long intra-building runs

Compatibility

Designed as an OEM-style structured cabling patch cable for singlemode LC duplex port applications in commercial and enterprise fiber optic network installations.

Installation Notes

Low-voltage network cabling technicians install fiber patch cables following TIA-568 and NEC Article 770 guidelines. Verify riser or plenum rating requirements with local AHJ before installation in building riser pathways. Protect endfaces with dust caps when not terminated and clean connectors with an appropriate fiber optic cleaning tool before mating. Avoid bending the cable below its minimum bend radius to prevent signal loss or physical damage to the fiber strand.
