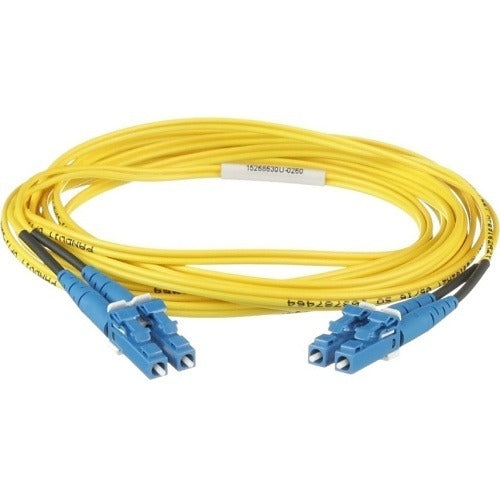

Panduit F92ERLNLNSNF010 OS2 Duplex Fiber Patch Cable Lc

Product Description

The PANDUIT F92ERLNLNSNF010 is an OS2 single-mode duplex fiber optic patch cable with LC connectors on both ends. It features a 1.6mm diameter jacketed cable construction rated OFNR (Optical Fiber Nonconductive Riser) for in-building riser installations. The cable ships as a single unit and is used to interconnect fiber optic equipment in structured cabling systems. Network technicians and low-voltage installers deploy this cable in data centers, server rooms, and telecommunications closets where single-mode transmission and riser-rated cabling are required.

This patch cable is suited for single-mode fiber applications in commercial and enterprise environments. It is used to connect switches, routers, media converters, patch panels, and fiber transceivers in riser pathways. The LC duplex connector format is standard in high-density fiber installations. The OFNR rating allows routing through vertical riser shafts between floors without the need for conduit, making it a practical choice for in-building backbone and horizontal fiber runs.

Key Features

• OS2 single-mode fiber for long-distance, low-loss transmission
• LC duplex connectors on both ends for high-density panel and equipment compatibility
• 1.6mm jacketed cable for flexible routing in tight spaces
• OFNR-rated jacket approved for riser installations without conduit
• 2-fiber duplex construction supports full-duplex data links
• Single unit (EA) quantity per package

Compatibility

Designed as an OEM-style patch cable for use with LC-port fiber optic equipment in OS2 single-mode structured cabling systems.

Installation Notes

Installation should be performed by a qualified low-voltage technician or licensed network cabling installer familiar with ANSI/TIA-568 fiber optic cabling standards. Power down connected active equipment before disconnecting or connecting fiber patch cables to prevent transient damage to optical transceivers. Keep connector end-faces capped or cleaned with an appropriate fiber cleaning tool before mating to avoid contamination-related signal loss. Do not bend the cable below its minimum bend radius during routing.
