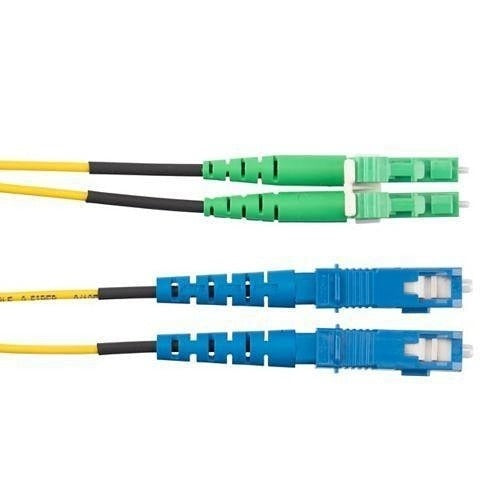

Panduit F92ERB1SNSNM025 OS2 Duplex Fiber Patch Cable

Product Description

The PANDUIT F92ERB1SNSNM025 is an OS2 singlemode duplex fiber optic patch cable designed for structured cabling installations in commercial and industrial network environments. Built with a 1.6mm diameter jacketed construction and OFNR (Optical Fiber Nonconductive Riser) rating, this cable is suited for riser-rated pathways where fire code compliance is required. It terminates with LC APC (Angled Physical Contact) connectors on both ends, delivering low back-reflection performance critical in high-speed singlemode transmission runs. Network technicians and low-voltage cabling installers are the primary trades who specify and deploy this assembly.

This patch cable is used in data centers, telecom rooms, and enterprise network deployments where OS2 singlemode fiber infrastructure is in place. The LC APC connector type is commonly specified in fiber-to-the-premises and passive optical network backbones where return loss performance is a priority. At 25 meters, this assembly bridges longer in-rack or cross-floor runs that shorter patch lengths cannot cover. It ships as a complete factory-terminated assembly requiring no field polishing or epoxy work.

Key Features

• OS2 singlemode fiber construction for long-distance, high-bandwidth transmission
• LC APC connectors on both ends for low back-reflection, angled physical contact performance
• 1.6mm duplex jacket diameter for flexible routing in tight cable management environments
• OFNR riser rating meets NEC Article 770 requirements for riser-rated installations
• Factory-terminated assembly eliminates field polishing and reduces installation error
• 2-fiber duplex configuration supports full-duplex transceiver operation

Compatibility

Designed as an OEM-style replacement or standard patch assembly for OS2 singlemode LC APC fiber optic panel ports, transceivers, and network equipment in riser-rated structured cabling systems.

Installation Notes

Installation is performed by low-voltage cabling technicians or network infrastructure installers familiar with fiber optic handling practices. Avoid sharp bends below the minimum bend radius of the cable during routing and dressing. Clean all LC APC connector ferrules with appropriate fiber cleaning tools before mating to adapter panels or transceivers. Riser-rated pathways must comply with local AHJ interpretation of NEC Article 770 for OFNR-rated fiber assemblies.
