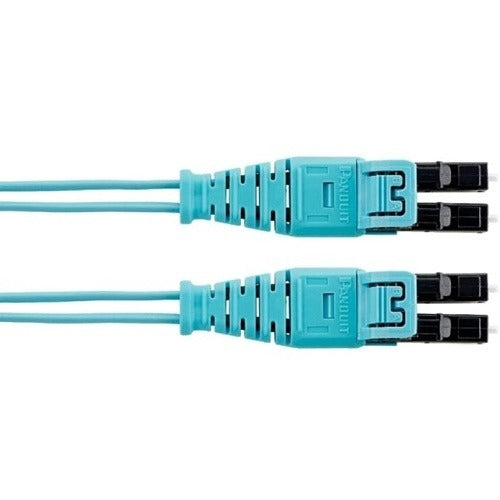

Panduit F92ELQ1Q1SNM017 OS2 Duplex Fiber Patch Cable

Product Description

The PANDUIT F92ELQ1Q1SNM017 is an OS2 single-mode duplex fiber optic patch cable designed for low-loss, high-bandwidth data transmission in structured cabling installations. Built with a 1.6mm cable diameter and a Low Smoke Zero Halogen (LSZH) jacket, this assembly is suited for environments where fire safety and air quality are a concern, such as enclosed spaces, plenum areas, and buildings with strict smoke-emission requirements. The polished LC-style push-pull connectors allow for fast, tool-free engagement and extraction in dense patch panels. Network technicians and low-voltage cabling contractors are the primary installers.

This patch cable is used in single-mode fiber backbone and horizontal runs in commercial and enterprise network environments. The push-pull connector design makes it particularly practical in high-density fiber enclosures where adjacent connector clearance is limited. The LSZH jacket rating makes it appropriate for European-standard installations and any domestic project specifying reduced halogen emissions. It is sold as a single assembly (EA) per unit.

Key Features

• OS2 single-mode fiber core for long-distance, low-attenuation data transmission
• Duplex configuration supports bidirectional transceiver connections in a single cable
• 1.6mm cable diameter reduces bend radius and improves routing in tight spaces
• LSZH jacket minimizes toxic smoke and halogen gas release in the event of fire
• Push-pull connector body enables one-finger release in congested patch fields

Compatibility

Designed as an OEM-style replacement or new-installation fiber patch cable for OS2 single-mode LC-duplex fiber optic ports in structured cabling systems and network equipment.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician familiar with TIA-568 fiber optic standards. Inspect ferrule end-faces for contamination before mating and clean with an approved fiber optic cleaning tool if needed. Do not bend the cable beyond its minimum bend radius during routing or dressing. Power down connected optical transceivers or disable ports before disconnecting active fiber links to protect sensitive optical components.
