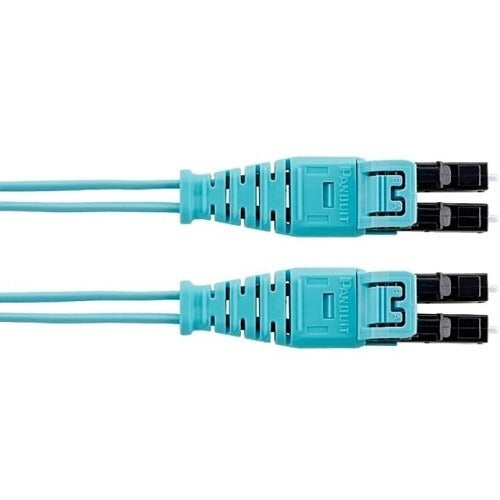

Panduit F92ELQ1Q1SNM015 OS2 Duplex Fiber Patch Cable

Product Description

The PANDUIT F92ELQ1Q1SNM015 is an OS2 single-mode duplex fiber optic patch cable designed for high-density structured cabling installations. Built with a 1.6mm diameter cable and terminated with LC push-pull connectors, this patch cable supports low-insertion-loss signal transmission in data center and enterprise network environments. The LSZH (Low Smoke Zero Halogen) jacket formulation reduces toxic smoke and halogen gas emissions in the event of fire, making it suitable for use in plenum-adjacent or enclosed spaces where air quality and safety codes are a priority. Network technicians and low-voltage cabling installers are the primary trades that work with this cable.

This patch cable is suited for OS2 single-mode fiber infrastructure in commercial and enterprise environments, including data centers, telecommunications rooms, and high-density patch panels. The duplex configuration supports full-duplex transmission links such as those used in SFP transceivers, fiber switches, and optical network equipment. The push-pull LC connector design is particularly useful in dense patching environments where conventional LC latch access is restricted by adjacent cable bundles or closely spaced ports.

Key Features

• OS2 single-mode fiber construction for long-distance, low-attenuation transmission
• Duplex (2-fiber) configuration supports full-duplex network links
• 1.6mm cable diameter for flexible routing in high-density installations
• LSZH jacket reduces hazardous emissions in enclosed or low-ventilation spaces
• Push-pull LC connector design enables easy extraction in congested patch fields
• PC (Physical Contact) polish on ferrules minimizes back-reflection

Compatibility

Designed as an OEM-style replacement or standard patch cable for OS2 single-mode LC duplex fiber infrastructure in commercial and enterprise structured cabling systems.

Installation Notes

Installation is typically performed by low-voltage cabling technicians or network infrastructure specialists. Inspect ferrule end-faces prior to insertion and clean with approved fiber cleaning tools to prevent contamination-related signal loss. Do not exceed the minimum bend radius of the cable during routing, and avoid sharp kinks or pinch points. Follow TIA-568 and applicable local codes for fiber pathway and space requirements.
