Panduit F92ELQ1Q1SNM001 OS2 Duplex Fiber Patch Cable

Product Description

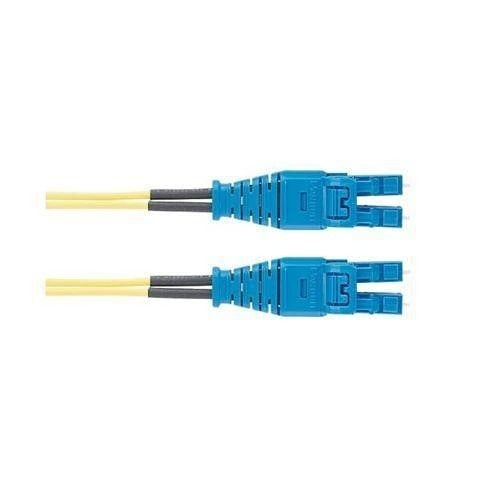

The PANDUIT F92ELQ1Q1SNM001 is an OS2 singlemode duplex fiber optic patch cable designed for low-loss, high-bandwidth structured cabling installations. Built with a 1.6mm duplex round cord and terminated with LC push-pull connectors on both ends, this cable is suited for data center, enterprise network, and telecommunications applications. The LSZH (Low Smoke Zero Halogen) jacket material limits toxic smoke and halogen gas emission in the event of fire, making it the correct choice for enclosed or plenum-adjacent spaces where code compliance demands it. Network technicians and licensed low-voltage contractors are the primary installers of this cable.

This patch cable is used to interconnect fiber optic equipment in structured cabling environments, including patch panels, switches, transceivers, and optical distribution frames. The OS2 singlemode designation means it is optimized for long-distance, single-wavelength transmission rather than short-run multimode applications. The push-pull LC connector design allows for dense port installations where standard pull-tab connectors are difficult to operate in tight spaces. It is well suited for high-density rack environments in commercial and enterprise settings.

Key Features

• OS2 singlemode fiber for long-distance, low-attenuation signal transmission
• Duplex 1.6mm round cord construction for flexible cable management in dense environments
• LC push-pull connectors on both ends for easy extraction in high-density patch fields
• LSZH jacket material reduces toxic smoke and halogen emissions for compliance in restricted spaces
• PC (Physical Contact) polish on connector ferrules for reliable low-reflection terminations

Compatibility

Designed as an OEM-style replacement and standard interconnect solution for OS2 singlemode LC-to-LC fiber optic patch applications in structured cabling systems.

Installation Notes

Installation should be performed by a qualified low-voltage technician or network cabling professional familiar with fiber optic handling practices. Always inspect connector end-faces with an appropriate fiber inspection scope before mating, and clean ferrules with approved tools prior to insertion. Avoid bending the cable beyond its minimum bend radius and do not apply tension that could stress the ferrule-to-fiber bond. Reference TIA-568 and applicable local codes for structured cabling installation requirements.
