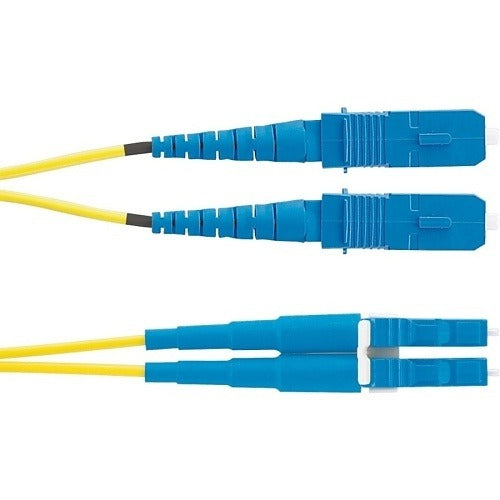

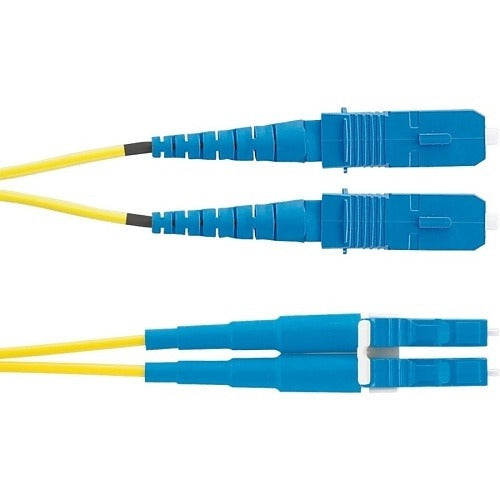

Panduit F92ELLNSNSNM046 OS2 Duplex Lc Fiber Cable

Product Description

The PANDUIT F92ELLNSNSNM046 is a single-mode OS2 duplex fiber optic patch cable designed for structured cabling installations in commercial and enterprise environments. Built with a 1.6mm jacketed duplex construction and terminated with LC connectors on both ends, this cable carries optical signals with low insertion loss across long-distance runs. The LSZH (Low Smoke Zero Halogen) jacket makes it suitable for plenum and enclosed-space deployments where fire safety ratings are a code requirement. Licensed low-voltage technicians and structured cabling installers are the primary trades handling this type of cable.

This patch cable is used in data center, telecommunications room, and horizontal cabling applications where OS2 single-mode fiber is specified. The duplex LC form factor is a standard termination style found in switches, transceivers, patch panels, and fiber distribution units. The LSZH jacket is commonly required in European installations and in domestic projects where local fire codes restrict PVC-jacketed cabling in air-handling spaces.

Key Features

• OS2 single-mode fiber supports long-distance, low-attenuation optical transmission
• Duplex LC connectors on both ends for standard switch and transceiver port compatibility
• 1.6mm jacket diameter suits tight-routing environments and high-density patch fields
• LSZH jacket reduces toxic smoke emission in confined or plenum spaces
• 2-fiber construction supports full-duplex transmit and receive in a single cable assembly

Compatibility

Designed as an OEM-style patch cable for use with OS2 single-mode fiber optic equipment terminating in duplex LC ports, including patch panels, fiber switches, and SFP transceivers specifying LC duplex connectors.

Installation Notes

Installation should be performed by a qualified low-voltage technician or structured cabling installer familiar with fiber handling practices. Avoid exceeding the minimum bend radius of the cable during routing to prevent signal degradation. Clean LC ferrules with an approved fiber optic cleaning tool before mating to ports or adapters. Do not exceed the rated pulling tension when routing through conduit or cable management.
