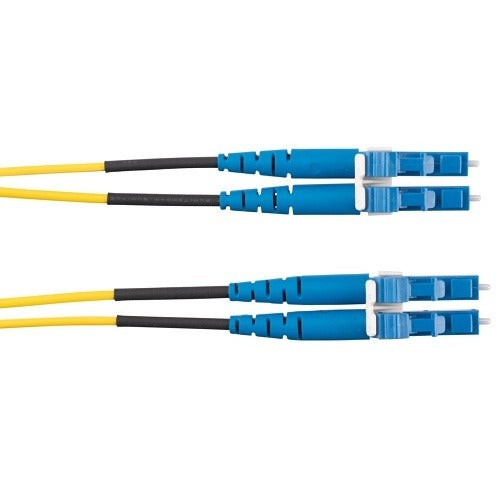

Panduit F92ELLNLNSNM9.5 OS2 Lc Duplex Fiber Patch Cord

Product Description

The PANDUIT F92ELLNLNSNM9.5 is a single-mode OS2 duplex fiber optic patch cord designed for structured cabling and data network installations. Built with a 1.6mm LSZH (Low Smoke Zero Halogen) jacket and LC duplex connectors, this cord carries two fibers in a parallel configuration suited for bidirectional or dual-channel transmission. The polished PC (Physical Contact) connector end-faces minimize back reflection and insertion loss, making this patch cord appropriate for high-density fiber distribution frames, telecommunications rooms, and data center cross-connects. Licensed electricians and low-voltage cabling technicians are the typical installers.

This patch cord is suited for indoor single-mode fiber runs in commercial and enterprise environments where low-smoke, halogen-free materials are required by local fire or building codes. The LSZH jacket meets requirements common in plenum-adjacent or enclosed spaces where toxic fume generation during a fire event is a code concern. At 9.5 meters in length, it is appropriate for inter-rack and zone-distribution connections inside data centers, telecom closets, and equipment rooms.

Key Features

• OS2 single-mode fiber for long-reach, low-loss transmission
• Duplex LC connectors with PC polish for low back reflection
• 1.6mm LSZH jacket rated for low smoke and zero halogen output
• 2-fiber construction in a duplex parallel configuration
• 9.5-meter length accommodates inter-rack and zone-distribution runs

Compatibility

Designed as an OEM-style replacement or standard-fit patch cord for OS2 single-mode LC duplex ports on fiber distribution frames, switches, transceivers, and patch panels in structured cabling systems.

Installation Notes

Installation is performed by low-voltage cabling technicians or licensed electricians familiar with fiber optic termination practices. Deactivate or shutter any active fiber ports before handling connector end-faces to prevent eye hazard from live laser sources. Clean connector ferrules with appropriate fiber optic cleaning tools before mating to avoid contamination-related insertion loss. Follow TIA-568 or applicable local structured cabling standards for bend radius and strain relief.
