Panduit F923RSNSNSNM002 OS2 Sc Duplex Fiber Patch Cable

Product Description

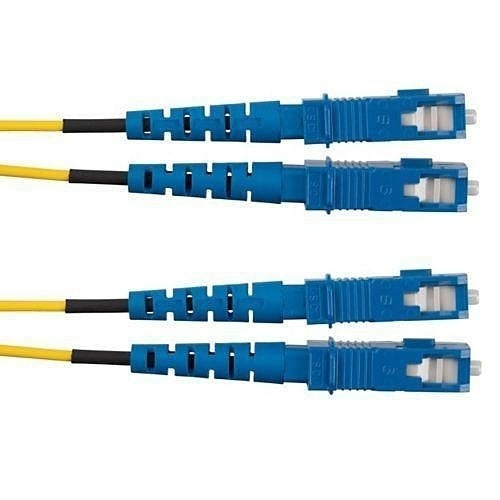

The PANDUIT F923RSNSNSNM002 is an OS2 singlemode duplex fiber optic patch cable with SC connectors on both ends. It features a 3mm outer jacket rated OFNR (Optical Fiber Nonconductive Riser), making it suitable for vertical riser runs inside commercial and industrial buildings. The cable ships as a 2-meter assembly with a PC (Physical Contact) polish on each connector, which minimizes back reflection and insertion loss. Network technicians and low-voltage installers use this cable to interconnect fiber optic equipment in structured cabling systems, data centers, and telecommunications rooms.

This patch cable is designed for OS2 singlemode applications where long-distance, low-attenuation fiber runs are required. The SC duplex connector format is common in enterprise switching gear, fiber distribution panels, and optical transceivers. The OFNR riser rating makes it code-appropriate for building riser pathways without requiring plenum-rated cable. It is typically installed by licensed low-voltage technicians or network cabling professionals working to TIA-568 structured cabling standards.

Key Features

• OS2 singlemode fiber supports long-distance, low-loss optical transmission
• SC duplex connectors on both ends with PC polish for low back reflection
• 3mm OFNR-rated jacket approved for riser installations per NEC Article 770
• 2-meter factory-terminated assembly eliminates field termination
• Duplex configuration supports full-duplex data links in a single cable

Compatibility

Designed as an OEM-style patch cable for use with OS2 singlemode fiber optic ports featuring SC duplex interfaces, including fiber distribution panels, media converters, and optical transceivers in structured cabling environments.

Installation Notes

Installation is performed by low-voltage or network cabling technicians following TIA-568 and NEC Article 770 guidelines. Power down or disable the optical transmitter before connecting or disconnecting fiber to avoid eye hazard from laser light. Clean SC connector ferrules with an approved fiber optic cleaning tool before mating to prevent contamination-related signal loss. Do not exceed the minimum bend radius of the cable during routing or termination.
