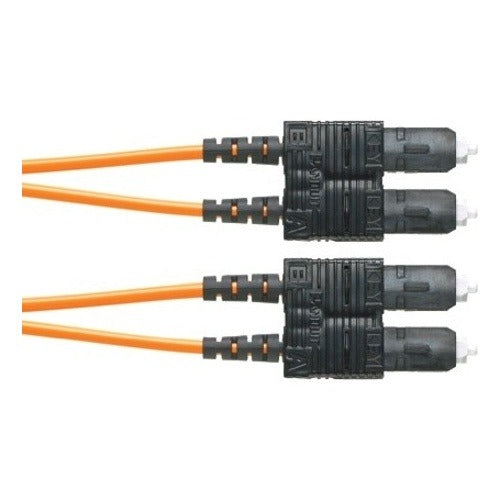

Panduit F923LSNSNSNM027 OS2 Duplex Sc Fiber Patch Cable

Product Description

The PANDUIT F923LSNSNSNM027 is an OS2 singlemode duplex fiber optic patch cable designed for low-loss, high-bandwidth data transmission in structured cabling installations. Built with a 3mm LSZH (Low Smoke Zero Halogen) jacket and SC duplex connectors on both ends, this 2-fiber assembly provides a clean, reliable connection between active equipment and patch panels. The LSZH jacket is required in plenum and enclosed-space environments where toxic smoke emission must be controlled. Licensed network technicians and low-voltage cabling installers are the primary users of this assembly.

This patch cable is suited for enterprise LAN backbones, data center interconnects, and telecom room cross-connects where OS2 singlemode fiber is the installed plant. The SC duplex connector format remains common on switches, transceivers, and patch panels in both new and legacy infrastructures. The 3mm jacket construction provides added durability for frequent moves, adds, and changes compared to 2mm zipcord assemblies. This cable ships as a single unit and is intended for light-duty horizontal or short-run backbone patching.

Key Features

• OS2 singlemode fiber for long-distance, high-bandwidth applications
• SC duplex connectors on both ends for standard panel and equipment termination
• LSZH jacket meets low smoke zero halogen requirements for enclosed and plenum-adjacent spaces
• 3mm jacket diameter provides increased mechanical protection over standard 2mm zipcord
• 2-fiber duplex configuration supports full-duplex transmission in a single assembly
• PC (Physical Contact) polish on connectors minimizes back-reflection at the fiber interface

Compatibility

Designed as an OEM-style patch cable compatible with standard SC duplex ports on singlemode-capable switches, media converters, patch panels, and fiber optic transceivers.

Installation Notes

Installation is performed by licensed low-voltage cabling technicians or network installers familiar with fiber optic handling procedures. De-energize connected equipment and observe laser safety precautions before handling open fiber ends. Inspect and clean SC ferrules with appropriate fiber cleaning tools prior to insertion. Follow TIA-568 bend radius guidelines and avoid kinking or crushing the cable jacket during routing.
