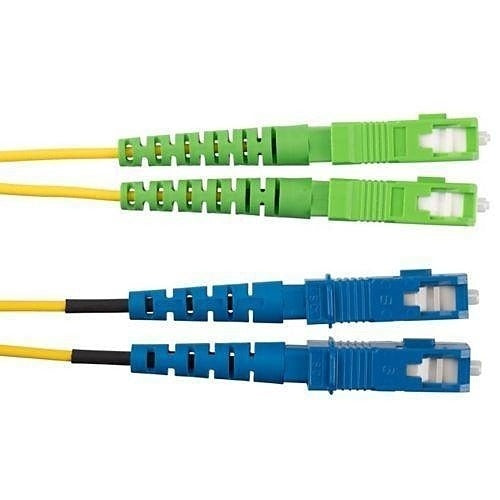

Panduit F923LANSNSNM015 OS2 Fiber Patch Cable Sc Apc to Sc

Product Description

The PANDUIT F923LANSNSNM015 is an OS2 single-mode duplex fiber optic patch cable designed for low-loss, long-distance network connections in structured cabling installations. Built with a 3mm LSZH (Low Smoke Zero Halogen) jacket, this 2-fiber cable provides clean signal transmission across backbone and horizontal runs where fire code or indoor air-handling requirements demand reduced smoke and toxicity ratings. The SC APC to SC connector configuration delivers angled physical contact termination on one end for reduced back reflection, making it well suited for high-sensitivity optical links. Network technicians and low-voltage cabling installers are the primary trades for this component.

This patch cable is used in commercial and enterprise network environments where OS2 single-mode fiber infrastructure is already in place. Typical applications include connecting fiber switches, transceivers, patch panels, and optical distribution frames in data centers, telecom rooms, and campus backbone runs. The LSZH jacket material makes it appropriate for plenum-adjacent or enclosed indoor spaces subject to local fire and building codes. The SC APC connector on one end is common in GPON, FTTx, and high-precision optical testing setups.

Key Features

• OS2 single-mode fiber supports long-distance, low-attenuation transmission
• Duplex 2-fiber construction for simultaneous bidirectional signal paths
• 3mm LSZH jacket reduces smoke and halogen emissions in enclosed spaces
• SC APC connector provides angled physical contact for low back reflection
• SC connector on opposite end for standard patch panel or switch port termination
• Sold individually as a single assembly unit

Compatibility

Designed as an OEM-style replacement and standard-fit patch cable for OS2 single-mode fiber installations using SC APC and SC connector interfaces in structured cabling systems.

Installation Notes

Installation is performed by licensed low-voltage cabling technicians or network infrastructure professionals. Before connecting or disconnecting fiber patch cables, power down associated optical transceivers where possible and use appropriate fiber-safe inspection tools to verify connector end-face cleanliness. Bend radius minimums for 3mm fiber cable must be observed to prevent signal degradation or physical damage to the fiber core. Work should comply with applicable TIA-568 structured cabling standards and local building codes governing LSZH jacket use in specific space classifications.
