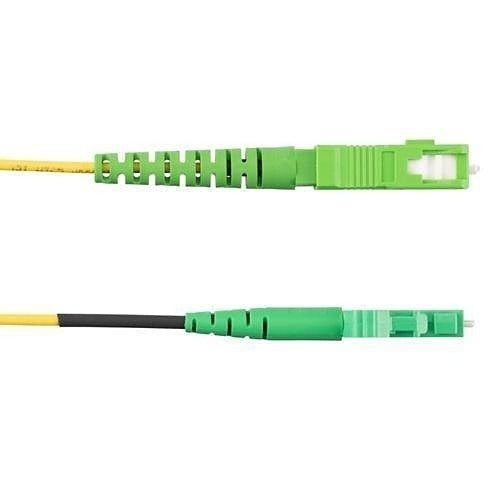

Panduit F91ERANB1SNM006 OS2 Fiber Patch Cord Sc/apc Lc

Product Description

The PANDUIT F91ERANB1SNM006 is an OS2 single-mode, single-fiber fiber optic patch cord with a 1.6mm diameter cable jacket rated OFNR (Optical Fiber Nonconductive Riser). It terminates with an SC/APC connector on one end and an LC connector on the other, providing a low-loss physical contact connection between active equipment and patch panels. This patch cord is designed for structured cabling installations in commercial and enterprise environments where single-mode transmission is required. Network technicians and low-voltage cabling contractors are the primary installers.

This patch cord is suited for single-mode fiber runs in riser-rated building environments, including data centers, telecom rooms, and enterprise LAN infrastructure. The SC/APC-to-LC configuration supports connections between legacy SC/APC-equipped transceivers or patch panels and modern LC-interface equipment. The OFNR jacket rating makes it appropriate for vertical runs between floors inside a building where a plenum-rated cable is not required.

Key Features

• OS2 single-mode fiber supports long-distance, low-attenuation signal transmission
• 1.6mm cable diameter provides a slim, flexible form factor for dense patch environments
• OFNR-rated jacket meets riser installation requirements for vertical intrabuilding runs
• SC/APC to LC connector configuration bridges legacy and modern fiber equipment
• Physical contact (PC) polish on connectors minimizes back-reflection at the interface

Compatibility

Designed as an OEM-style patch cord for use with OS2 single-mode fiber infrastructure, compatible with SC/APC and LC adapter panels, transceivers, and active equipment accepting 1.6mm fiber patch cords in riser-rated installations.

Installation Notes

Installation is performed by licensed low-voltage cabling contractors or network technicians familiar with fiber optic handling practices. Clean connector end-faces with an appropriate fiber optic cleaning tool before mating, and inspect with a fiber scope when possible. Do not bend the cable beyond its minimum bend radius during routing. Riser installations must comply with applicable local building and fire codes governing vertical cable runs.
