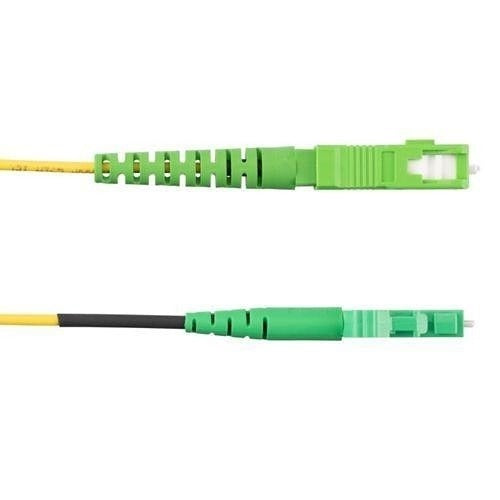

Panduit F91ELANB1SNM015 OS2 Sc/apc Fiber Patch Cord

Product Description

The PANDUIT F91ELANB1SNM015 is an OS2 single-fiber patch cord terminated with SC/APC connectors and jacketed in a 1.6mm low-smoke zero-halogen (LSZH) sheath. OS2 designates a single-mode fiber optimized for long-distance, low-loss transmission in structured cabling and data center environments. The LSZH jacket reduces toxic gas and smoke emission in the event of fire, making it the appropriate choice for enclosed or poorly ventilated spaces where occupant safety and code compliance are priorities. This patch cord is sold as a single unit and is typically handled by licensed low-voltage cabling technicians or network infrastructure installers.

This patch cord is suited for single-mode fiber runs in commercial and enterprise structured cabling systems, including data centers, telecommunications rooms, and campus backbone interconnects. The SC/APC connector uses an angled physical contact polish that reduces back-reflection, making it well-matched to passive optical network (PON) infrastructure, fiber-to-the-premises (FTTP) terminations, and other return-loss-sensitive applications. Installers working in plenum or riser pathways with LSZH requirements will find this cord appropriate for those environments.

Key Features

• OS2 single-mode fiber for low-loss, long-distance signal transmission
• SC/APC connectors with angled physical contact polish for reduced back-reflection
• 1.6mm LSZH jacket for low smoke and zero halogen emission in fire conditions
• Sold as a single unit, suitable for individual port patching or spare inventory
• Compact 1.6mm jacket diameter for high-density patching environments

Compatibility

Designed as a standard OS2 single-mode patch cord for use with SC/APC-compatible fiber panels, switches, transceivers, and optical network equipment in structured cabling installations.

Installation Notes

Installation is performed by qualified low-voltage technicians or structured cabling installers following TIA-568 or ISO/IEC 11801 standards as applicable. Inspect connector end-faces with a fiber inspection scope before mating to verify cleanliness and prevent insertion loss. Do not exceed the minimum bend radius of the cable during routing, as kinking a single-mode fiber will degrade or sever the optical signal. Disconnect from active optical equipment before handling to avoid exposure to invisible laser radiation.
