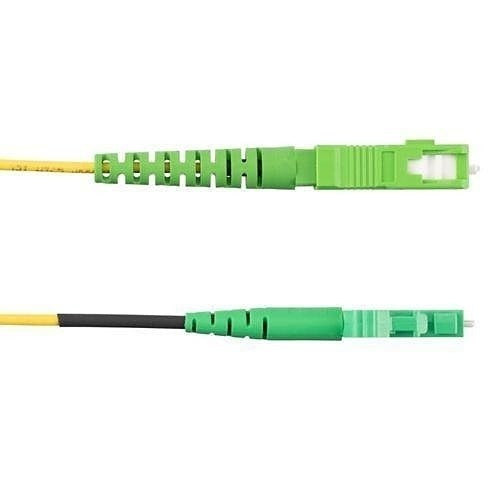

Panduit F91ELANB1SNM007 OS2 Sc/apc Fiber Patch Cord

Product Description

The PANDUIT F91ELANB1SNM007 is an OS2 single-mode, single-fiber fiber optic patch cord terminated with SC/APC connectors. Built with a 1.6mm diameter cable jacket and a Low Smoke Zero Halogen (LSZH) outer sheath, this patch cord is designed for structured cabling installations where flame and smoke toxicity ratings are a concern. The SC/APC connector style provides angled physical contact (APC) termination, which reduces back-reflection and is commonly specified in passive optical network (PON) and high-performance single-mode fiber links. Licensed technicians and data communications installers handle this type of assembly in telecom rooms, data centers, and building distribution frames.

This patch cord is suited for structured cabling environments where OS2 single-mode fiber is the backbone medium. Typical applications include horizontal or backbone runs between patch panels, optical distribution frames, and active equipment ports. LSZH jacketing makes it appropriate for plenum-adjacent or enclosed spaces where low smoke and halogen-free materials are required by building or fire codes. Sold as a single unit, it is a direct plug-in assembly requiring no field termination.

Key Features

• OS2 single-mode fiber for long-distance, low-attenuation transmission
• SC/APC connectors deliver angled physical contact termination for reduced back-reflection in PON and similar applications
• 1.6mm cable diameter provides a compact, flexible form factor for high-density patching environments
• Low Smoke Zero Halogen (LSZH) jacket reduces toxic gas and smoke emission in the event of fire
• Factory-terminated assembly eliminates field polishing and testing of connectors

Compatibility

Designed as an OEM-style replacement and standard patch assembly for OS2 single-mode fiber infrastructure using SC/APC port interfaces.

Installation Notes

Installation is performed by licensed low-voltage or structured cabling technicians following TIA-568 and applicable local codes. Before patching, inspect connector end-faces with a fiber inspection scope and clean using appropriate lint-free tools — never connect an uninspected fiber end to active equipment. Route the cord with bend radii that do not exceed the cable minimum to avoid attenuation. Do not apply excessive pull tension or sharp bends when dressing the cord in a patch panel or cable management tray.
