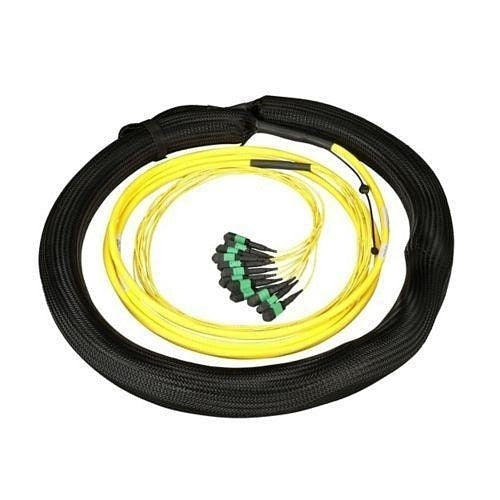

Panduit F8NNM5ENNAAM030 OS2 432F Trunk Cable Ofnr Lszh

Product Description

The PANDUIT F8NNM5ENNAAM030 is a high-density OS2 single-mode fiber optic trunk cable rated for 432 fibers, designed for indoor/outdoor distribution runs in structured cabling infrastructure. Rated OFNR (Optical Fiber Nonconductive Riser) and constructed with an LSZH (Low Smoke Zero Halogen) jacket, this trunk is built for environments where flame spread and toxic smoke emission are critical concerns. It serves as a pre-terminated backbone solution, reducing installation time compared to field-terminated cable. Licensed network technicians and low-voltage contractors handle installation in data centers, enterprise campuses, and telecommunications rooms.

This trunk cable is suited for high-density backbone applications in data centers, multi-tenant buildings, and campus distribution systems. The OS2 single-mode designation supports long-distance, high-bandwidth transmission, making it appropriate for runs between main distribution areas (MDAs), horizontal distribution areas (HDAs), and intermediate distribution areas (IDAs). The LSZH jacket rating makes it particularly relevant for plenum-adjacent or enclosed spaces where local codes require reduced-smoke materials. It ships as a single unit and is intended for direct installation without field termination.

Key Features

• 432-fiber OS2 single-mode construction for high-density backbone deployments
• OFNR riser rating meets fire code requirements for vertical runs between floors
• LSZH jacket reduces toxic smoke and flame spread in enclosed or occupied spaces
• Pre-terminated trunk design minimizes field labor and termination error
• Indoor/outdoor dual rating supports campus and inter-building pathway installations

Compatibility

Designed as an OEM-style trunk cable for use with high-density fiber patching and distribution systems accepting OS2 single-mode 432-fiber trunk assemblies.

Installation Notes

Installation should be performed by a licensed low-voltage contractor or network infrastructure technician familiar with structured cabling standards such as ANSI/TIA-568 and BICSI guidelines. De-energize any active equipment in the cable pathway before routing the trunk, and observe the manufacturer minimum bend radius during pulling to avoid fiber damage. Do not exceed the cable rated tensile load during installation pulls. Verify that the OFNR and LSZH ratings meet the requirements of the local Authority Having Jurisdiction before installation in riser or enclosed spaces.
