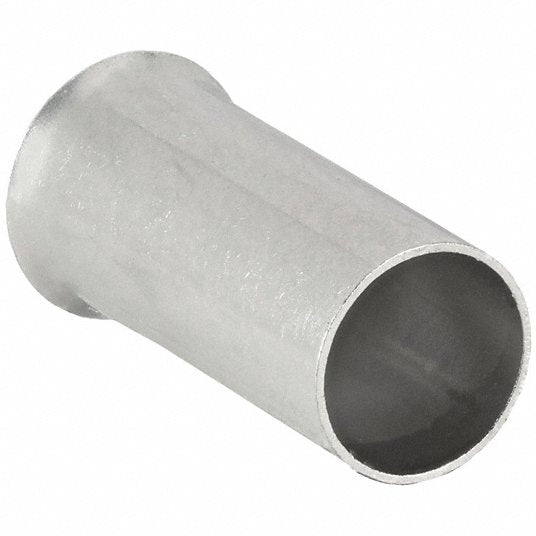

Panduit F83-12-D Pan-Term Single Wire Ferrule 12mm Pin L

Product Description

The Panduit F83-12-D is a non-insulated ferrule designed for secure wire termination. Constructed from copper with a tin-plated finish, this ferrule is suitable for 8 AWG wires and has a length of 12mm. It ensures reliable performance in temperatures up to 302 Degrees Fahrenheit. This ferrule meets DIN 46228, CSA C22.2 No. 291-14, UL 486F, and cULus 486F standards.

• Non-Insulated
• Made of Copper with Tin-Plated Finish
• Suitable for 8 AWG wires

Product Highlights

The Panduit F83-12-D ferrule ensures a secure wire termination, crafted from durable copper with a tin-plated finish.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F83-12-D
• Country of Origin: Germany

Technical Specifications

• Catalog Number: F83-12-D
• Manufacturer: Panduit
• Brand: Panduit
• Sub Brand: Pan-Term
• Country of Origin: Germany
• Made in USA: No
• Color: Metallic
• Finish: Tin-Plated
• Insulation: Non-Insulated
• Material: Copper
• Standard: DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
• UPC: 074983763511
• GTIN: 00074983763511
• Item Type: Non-Covered Ferrule
• Temperature Rating: 302 Degrees Fahrenheit (150 Degrees Celsius)
• Wire Size: 8
• Category: Connectors, Interconnects
• Style: DIN
• Series: Pan-Term
• Size: 8 AWG (10.00mm )
• Packaging: Bulk
• Length - Overall: 12.00mm
• Part Status: Active
• Base Product Number: F83
• Type: Single Wire
• RoHS Status: ROHS3 Compliant
• ECCN: EAR99
• Moisture Sensitivity Level (MSL): Not Applicable
• HTSUS: 8536.90.4000
• REACH Status: REACH Unaffected
• UNSPSC: 39121409
• Use With: CT-1003, CT-1004, CT-1090, CT-1123, CT-1104, CT-1160, CT-1170,CT-2300/ST (CD-090), CT-2500/L (CT-2504CH, CT-2523CH)
• Conductor Size: 8 AWG
• Inner Diameter: 0.18 in.
• Outer Diameter: 0.19
• Lug Wire Size: 8 AWG
• Color Family: Metallic
• Length: 0.47 in.
• Max. Temperature Rating: 302 F
• Barrel Diameter: 0.19 in
• Barrel Finish: Tin Plated
• Barrel Material: Copper
• Contact Finish: Tin
• Contact Material: Copper
• Package Qty: 500
• Display Sell UOM: PK
• Ferrule Diameter: 0.19 in
• Ferrule Material: Copper
• Insertion Length: 15/32 in
• Insulation Color: Bare
• Insulation Material: None
• Maximum Temperature: 302 F
• Maximum Wire Size: 8 AWG
• Minimum Temperature: -60 F
• Minimum Wire Size: 8 AWG
• Number of Insertable Wires: 1
• Overall Length: 12 mm, .47 in
• Special Features: Funnel Entry; Seamless Barrel; Suitable for Limited Space Applications; Type F
• Standards: CSA C22.2 No. 291-14; DIN 46228; UL 486F
• Strip Length: 15/32 in
• Termination Style: Crimp
• Manufacturer Part Number: Panduit F83-12-D
• Maximum Operating Temperature: 150 C, 302 F
• Inside Diameter: .18 in, 4.6 mm
• Product: Ferrules
• Product Type: Non-insulated Ferrules
• SKU: PANF83-12-D
