Panduit F6X4WH6 Wiring Duct 6 ft

Product Description

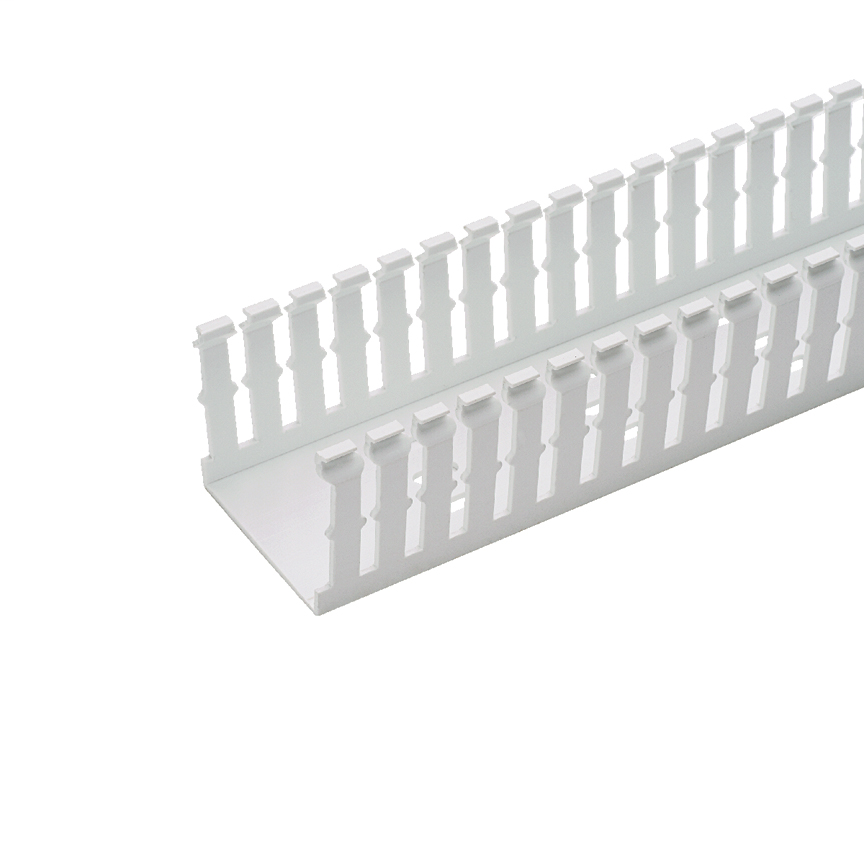

The PANDUIT F6X4WH6 slotted wiring duct is designed for cable management. Measuring 6 inches in width, 4 inches in depth, and 6 feet in length, it features a narrow slot design suitable for high-density components. Constructed from PVC, it includes mounting holes for easy installation.

• Narrow finger and slot design closely matches the spacing of high density components
• Upper and lower scorelines allows easy finger and sidewall section removals
• Provided with mounting holes

Product Highlights

Ideal for organizing cables in a tidy and safe workspace. RoHS compliant and constructed of lead-free PVC.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F6X4WH6
• Country of Origin: US

Technical Specifications

• Color: White
• Depth: 4 in
• Width: 6 in
• Length: 6 ft
• Material: PVC
• Slot Size: 0.2 in
• Slot Type: Narrow Slot
• Thickness: 0.11 in
• Mounting Type: Hole
• Adhesive Backed: No
• Flammability Rating: UL94 V-0
• Color Family: White
• Category: Cables, Wires - Management
• Wire Ducts, Raceways: Wire Ducts, Raceways
• Series: PANDUCT Type F
• Mount Type: Mounting Holes
• Wire Duct Type: Slotted (Raceway), Base
• Product Type: Narrow Slot Wiring Duct
• Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Type: Type F
• Standard: RoHS Compliant, UL Recognized, CE Compliant
