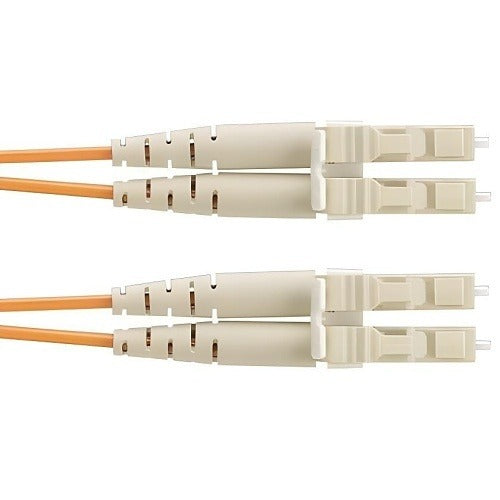

Panduit F62ERLNLNSNM018 OM1 Duplex Lc Fiber Patch Cable

Product Description

The PANDUIT F62ERLNLNSNM018 is an OM1 multimode duplex fiber optic patch cable terminated with LC connectors on both ends. Built with a 1.6mm diameter tight-buffered jacket rated OFNR (Optical Fiber Nonconductive Riser), this cable is designed for structured cabling installations where riser-rated pathways are required. The 2-fiber duplex configuration supports bidirectional data transmission over multimode optical infrastructure. It is installed by data network technicians, low-voltage cabling contractors, and AV systems integrators working in commercial and enterprise environments.

This patch cable is suited for horizontal and riser runs within commercial buildings, data centers, and campus network installations. The LC duplex connector format is standard for high-density fiber panels, switches, and transceivers. OM1 multimode glass supports legacy and current 62.5-micron fiber plant infrastructure. It is a pre-terminated factory-assembled cable requiring no field polishing or cleaving.

Key Features

• OM1 62.5-micron multimode fiber for use with multimode optical infrastructure
• Duplex 2-fiber construction supports full-duplex bidirectional data links
• 1.6mm riser-rated OFNR jacket suitable for vertical riser cable pathways
• LC duplex connectors on both ends for high-density panel and equipment connections
• Factory pre-terminated for consistent insertion loss and polished end-face quality

Compatibility

Designed as an OEM-style replacement or standard-fit patch cable for OM1 multimode LC duplex fiber ports in commercial structured cabling systems.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician or licensed data communications contractor. De-energize connected equipment and remove any active transceivers before connecting or disconnecting fiber patch cables. Keep dust caps on connectors until the moment of installation to protect end faces. Follow TIA-568 and local building codes for riser-rated cable routing and pathway fill requirements.
