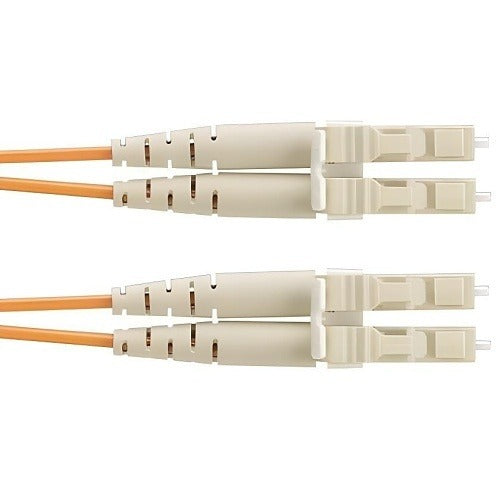

Panduit F62ERLNLNSNM012 OM1 Duplex Lc Fiber Patch Cable

Product Description

The PANDUIT F62ERLNLNSNM012 is an OM1 multimode duplex fiber optic patch cable designed for structured cabling installations in commercial and industrial network environments. Built with a 1.6mm cable diameter and dual LC connectors on both ends, this 12-meter assembly provides a reliable physical connection between active equipment and patch panels or fiber distribution hardware. The OFNR (Optical Fiber Non-conductive Riser) jacket rating makes it suitable for vertical riser pathways between floors where fire code compliance is required. Network technicians and low-voltage cabling contractors are the primary installers of this type of assembly.

This patch cable is suited for horizontal and riser runs in data centers, telecom rooms, enterprise LAN environments, and campus backbone applications where OM1 62.5-micron multimode fiber infrastructure is already in place. The duplex LC form factor is common in Gigabit Ethernet and fiber channel equipment. At 12 meters, this assembly fits medium-distance cabinet-to-cabinet or panel-to-equipment runs without field termination.

Key Features

• OM1 62.5-micron multimode fiber for legacy and current multimode infrastructure
• Duplex LC connectors on both ends for balanced transmit and receive paths
• 1.6mm cable diameter for flexible routing in congested cable trays and patch panels
• OFNR-rated jacket meets riser fire code requirements per NEC Article 770
• 12-meter pre-terminated assembly eliminates field termination and associated labor
• PC (Physical Contact) polish on connectors reduces back reflection at the interface

Compatibility

Designed as an OEM-style patch assembly for use with duplex LC-compatible fiber optic equipment, patch panels, and fiber distribution units in OM1 multimode cabling systems.

Installation Notes

Installation is performed by licensed low-voltage contractors or network cabling technicians familiar with fiber optic handling procedures. Keep bend radius above the minimum specified for the cable diameter to avoid signal degradation. Clean all LC ferrules with an approved fiber optic cleaning tool before mating. Power down active transceivers before connecting or disconnecting fiber assemblies to protect both the equipment and the installer's eyes.
