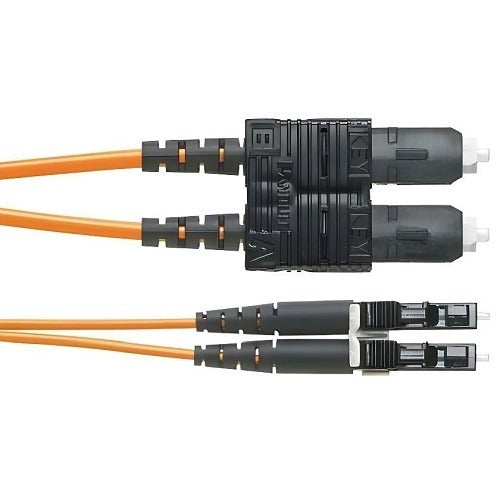

Panduit F62ELLNSNSNM020 OM1 Duplex Fiber Patch Cable

Product Description

The PANDUIT F62ELLNSNSNM020 is an OM1 multimode duplex fiber optic patch cable designed for structured cabling and network infrastructure installations. Featuring a 1.6mm diameter cable construction with a Low Smoke Zero Halogen (LSZH) jacket, this assembly is built for environments where fire safety and low toxicity are required, such as plenum spaces, transit facilities, and commercial buildings. The cable ships with LC-style duplex connectors and a Physical Contact (PC) polish on each ferrule, providing reliable low-loss connections in 62.5/125 micrometer multimode fiber runs. Licensed network technicians and structured cabling installers are the primary trade installing this type of assembly.

This patch cable is suited for short-to-medium distance multimode fiber links in data centers, telecommunications rooms, and enterprise LAN environments. The duplex LC connector format makes it compatible with common switch ports, transceivers, and patch panels using LC-style interfaces. The LSZH jacket formulation meets fire safety requirements in applications where halogen-free materials are specified by code or project spec. It is sold as a single assembly unit and is intended for direct installation without field termination.

Key Features

• OM1 62.5/125 micrometer multimode fiber supports standard multimode transmission applications
• Duplex LC connectors on both ends for straightforward insertion into LC-compatible ports and patch panels
• Physical Contact (PC) polish reduces back-reflection at each connector interface
• 1.6mm cable diameter provides a balance of flexibility and durability in cable management trays
• Low Smoke Zero Halogen (LSZH) jacket limits toxic gas and smoke output in confined or occupied spaces
• Factory-terminated assembly eliminates field polishing and reduces installation time

Compatibility

Designed as an OEM-style replacement or standard patch assembly for multimode OM1 fiber infrastructure utilizing LC duplex interfaces.

Installation Notes

Installation is performed by licensed low-voltage or structured cabling technicians following TIA-568 standards. Power down active ports or use a fiber port shutter before handling connector ferrules to prevent eye hazard from live fiber. Inspect ferrule end faces with an appropriate fiber scope prior to mating and clean per manufacturer guidelines. Avoid tight bend radii below the cable minimum bend radius to prevent signal loss or physical damage to the fiber core.
