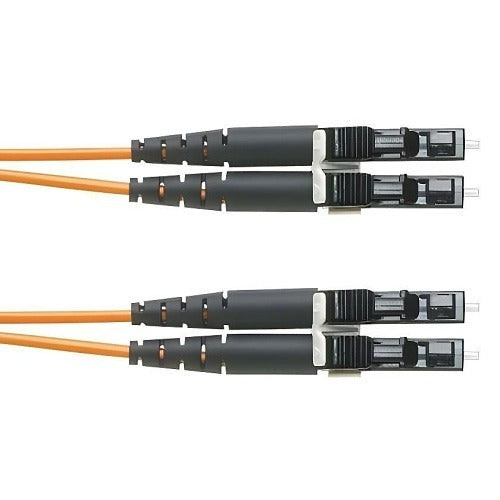

Panduit F62ELLNLNSNM040 OM1 Duplex Fiber Patch Cable

Product Description

The PANDUIT F62ELLNLNSNM040 is a 2-fiber OM1 multimode duplex fiber optic patch cable with a 1.6mm diameter jacket rated for LSZH (Low Smoke Zero Halogen) environments. Terminated with LC duplex connectors on both ends and polished to a PC (Physical Contact) finish, this cable is designed for structured cabling installations in commercial and enterprise network environments. The LSZH jacket reduces toxic smoke and halogen gas emissions in the event of a fire, making it suitable for plenum-adjacent or enclosed spaces where air quality safety standards apply. Network technicians and data communications installers are the primary end users for this assembly.

This patch cable is intended for use in OM1 multimode fiber networks operating at standard wavelengths of 850nm and 1300nm. It is a pre-terminated factory assembly, meaning no field polishing or splicing is required. Typical applications include structured cabling horizontal runs, patch panel connections, switch-to-server links, and fiber distribution panel jumpers in commercial buildings, data centers, and industrial facilities requiring LSZH-compliant cable assemblies.

Key Features

• OM1 multimode fiber grade supports legacy and standard multimode network applications
• LC duplex connectors on both ends for compatibility with common SFP and fiber panel ports
• PC (Physical Contact) polish on connector endfaces reduces back-reflection
• 1.6mm duplex zip-cord jacket profile for flexible routing in tight cable management spaces
• LSZH jacket compound meets low smoke and zero halogen fire safety requirements
• Factory-terminated and tested assembly eliminates field polishing requirements

Compatibility

Designed as an OEM-style replacement or standard fiber jumper for OM1 multimode structured cabling systems using LC duplex interface ports.

Installation Notes

This cable should be installed by a qualified low-voltage technician or structured cabling installer familiar with fiber optic handling practices. Inspect connector endfaces with a fiber inspection scope before mating to avoid contamination-related signal loss. Do not bend the cable below its minimum bend radius during routing, and avoid pinching or kinking the 1.6mm jacket. Refer to TIA-568 standards for proper fiber optic patch cord installation and testing requirements.
