Panduit F62ELLNLNSNM028 OM1 Duplex Fiber Patch Cord Lc

Product Description

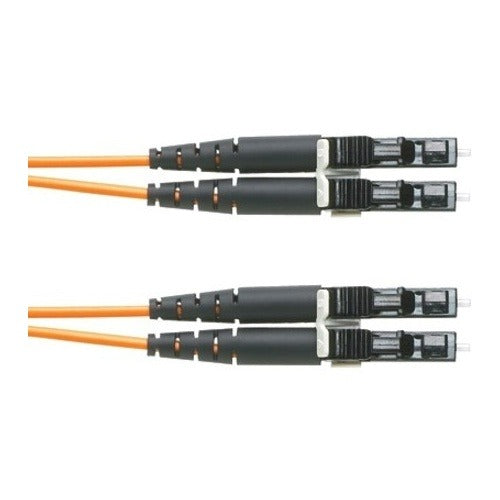

The PANDUIT F62ELLNLNSNM028 is an OM1 multimode duplex fiber optic patch cord designed for structured cabling and data network applications. Built with a 1.6mm diameter cable, dual-fiber construction, and LC duplex connectors on both ends, this cord delivers reliable optical signal transmission in low-smoke zero-halogen (LSZH) environments. The physical contact (PC) polish on the connector ferrules ensures consistent optical performance and low insertion loss. Network technicians and licensed low-voltage installers use this type of patch cord to connect switches, patch panels, and active equipment in telecommunications rooms and data centers.

This patch cord is suited for OM1 62.5-micron multimode fiber infrastructure in both commercial and light industrial settings. The LSZH jacket material makes it appropriate for plenum-adjacent or enclosed-space installations where halogen-free materials are specified by code or project requirements. The duplex LC format is common in Ethernet and SAN switching environments where bidirectional signal paths are required over a single cable assembly.

Key Features

• OM1 62.5-micron multimode fiber supports legacy and short-reach optical links
• 1.6mm duplex cable construction with two fibers in a single assembly
• LC duplex connectors on both ends for compact, high-density patching
• Physical contact (PC) polish minimizes back-reflection and insertion loss
• LSZH jacket meets halogen-free requirements for enclosed or sensitive spaces
• Sold as a single unit (EA), quantity one per package

Compatibility

Designed as an OEM-style patch cord for use with OM1 multimode fiber optic patch panels, switches, and transceivers equipped with LC duplex ports in structured cabling installations.

Installation Notes

Installation should be performed by a qualified low-voltage technician or network cabling professional familiar with fiber optic handling procedures. Before connecting or disconnecting fiber patch cords, power down or disable active optical transceivers where possible to avoid exposure to laser light. Keep dust caps in place on unused connectors and clean ferrule end-faces with approved fiber optic cleaning tools before mating. Bend radius minimums should be observed during routing to prevent optical degradation.
