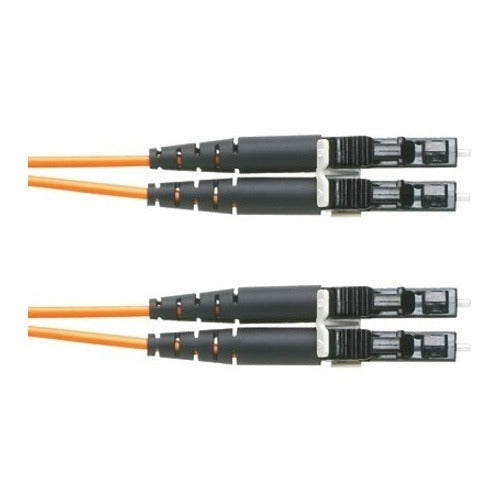

Panduit F62ELLNLNSNM015 OM1 Duplex Fiber Patch Cable

Product Description

The PANDUIT F62ELLNLNSNM015 is an OM1 multimode duplex fiber optic patch cable designed for structured cabling and network connectivity applications. Built with a 1.6mm diameter cable and LC duplex connectors on both ends, this patch cable supports multimode fiber transmission in data center, enterprise LAN, and telecommunications environments. The LSZH (Low Smoke Zero Halogen) jacket material makes it suitable for installation in enclosed or plenum-adjacent spaces where low-toxicity outgassing is required by code. Licensed network technicians and structured cabling installers are the primary trades who handle this component.

This patch cable is used in indoor fiber optic network installations where OM1 62.5-micron multimode fiber is the specified media. Typical applications include patch panel to switch connections, horizontal cross-connects, and equipment room fiber distribution. The LC duplex form factor is standard in high-density rack and cabinet installations. The LSZH jacket meets environmental and building code requirements for low-smoke materials in restricted-airflow or occupied spaces, making it appropriate for commercial buildings, schools, and healthcare facilities.

Key Features

• OM1 62.5-micron multimode fiber supports legacy and current multimode network infrastructure
• LC duplex connectors on both ends for high-density patch panel and switch port applications
• 1.6mm cable diameter provides flexibility in tight cable management environments
• LSZH jacket reduces toxic smoke and halogen gas emission in the event of fire
• PC (Physical Contact) polish on connectors minimizes back-reflection and insertion loss

Compatibility

Designed as an OEM-style replacement and standard-fit patch cable for OM1 multimode fiber infrastructure using LC duplex ports in structured cabling systems.

Installation Notes

Installation should be performed by a qualified structured cabling technician or network installer familiar with fiber optic handling procedures. Do not bend the cable beyond its minimum bend radius, and avoid pinching or kinking the fiber during routing. Clean all fiber end faces before mating connectors to LC ports to prevent contamination-related signal loss. Reference applicable local building codes and TIA-568 standards for fiber cabling installation requirements.
