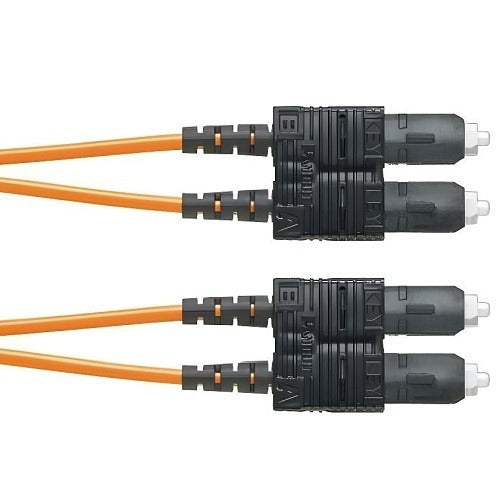

Panduit F623RSNSNSNM035 OM1 Duplex Sc Fiber Patch Cord

Product Description

The PANDUIT F623RSNSNSNM035 is an OM1 multimode duplex fiber optic patch cord designed for structured cabling and network infrastructure applications. Constructed with a 3mm outer jacket diameter and featuring SC connectors on both ends, this 2-fiber cord supports legacy multimode fiber installations where 62.5-micron glass is in use. The ONFR rating indicates an optical non-conductive fiber riser jacket, suited for vertical runs between floors in commercial buildings. Installation is handled by low-voltage cabling technicians and network infrastructure professionals.

This patch cord is used in commercial and light industrial settings where SC-to-SC duplex connections are required on OM1 multimode fiber runs. Typical applications include patch panel to switch connections, equipment room cross-connects, and horizontal cabling termination points. The riser-rated jacket makes it appropriate for use inside building risers and conduit runs that pass between floor levels, where fire code requires riser-rated cabling materials.

Key Features

• OM1 multimode fiber supports 62.5-micron glass for legacy network infrastructure
• Duplex configuration provides simultaneous transmit and receive on a single cord
• SC connectors on both ends for secure, push-pull latching connections
• 3mm jacket diameter offers added durability and bend protection
• ONFR riser-rated jacket meets fire code requirements for vertical building runs
• 2-fiber construction in a single jacketed assembly

Compatibility

Designed as an OEM-style replacement or direct installation patch cord for OM1 multimode fiber systems using SC duplex port interfaces on switches, patch panels, and active equipment.

Installation Notes

Low-voltage cabling technicians and network professionals typically install fiber optic patch cords as part of structured cabling systems governed by TIA-568 standards. De-energize active equipment ports before connecting or disconnecting fiber to avoid eye hazard from active laser or LED sources. Handle connectors with care to avoid contamination of the ferrule end face, and use an appropriate fiber inspection scope before insertion. Do not exceed the minimum bend radius of the cable during routing.
