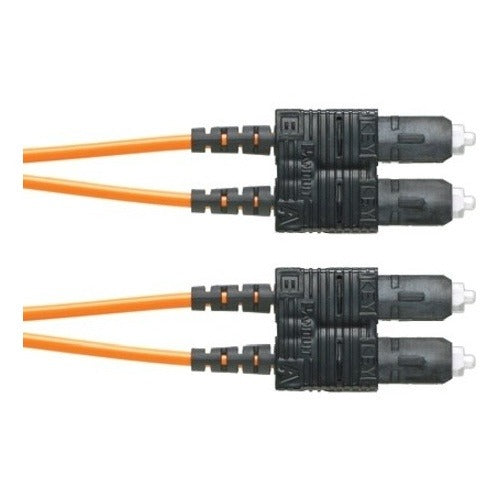

Panduit F623RSNSNSNM033 OM1 Duplex Fiber Patch Cable Sc

Product Description

The PANDUIT F623RSNSNSNM033 is an OM1 multimode duplex fiber optic patch cable terminated with SC connectors on both ends. It features a 3mm outer jacket and a 2-fiber construction, making it suitable for structured cabling installations in commercial and industrial environments. This cable carries an ONFR (optical fiber nonconductive riser) jacket rating, which qualifies it for use in building riser pathways between floors. Installers in data center, telecom room, and building network infrastructure work will recognize this as a standard interconnect or cross-connect jumper for multimode fiber runs.

This patch cable is used in riser-rated fiber cabling systems where a duplex SC-to-SC connection is required. Typical applications include patch panel to switch connections, equipment room cross-connects, and horizontal or riser backbone links in commercial buildings. The OM1 designation indicates 62.5-micron multimode fiber, which is commonly found in legacy and cost-sensitive network installations. It ships as a single unit and is ready to install out of the package.

Key Features

• OM1 62.5-micron multimode fiber construction
• Duplex configuration with two fibers in a single 3mm jacket
• SC connectors on both ends for standard push-pull mating
• ONFR riser-rated jacket for vertical pathway installations between floors
• Single unit packaging, no field termination required

Compatibility

Designed as an OEM-style replacement or standard interconnect jumper for OM1 multimode fiber optic systems using SC-type duplex ports in riser-rated structured cabling environments.

Installation Notes

Fiber patch cables of this type are installed by low-voltage technicians and structured cabling professionals following TIA-568 and building code requirements for riser pathways. Power down or place active equipment in a safe state before disconnecting existing fiber links to avoid disruption to live network traffic. Clean SC connector ferrules with an approved fiber optic cleaning tool before mating to prevent contamination-related signal loss. Do not bend the cable tighter than the manufacturer-specified minimum bend radius during routing and dressing.
