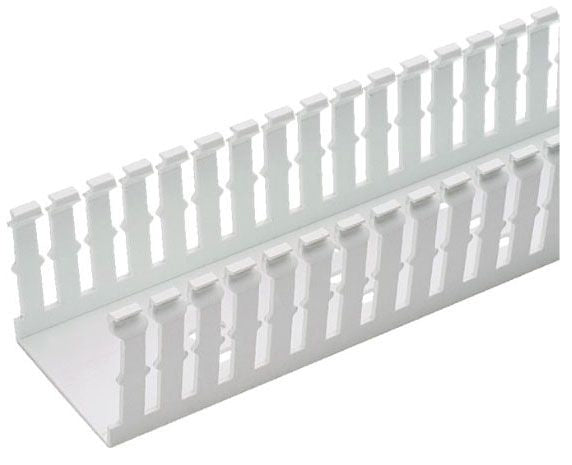

Panduit F4X5WH6 Wire Duct Per Foot White

Product Description

The PANDUIT F4X5WH6 is a wire management duct sold by the foot, designed to organize and route electrical conductors in control panels, enclosures, and industrial wiring applications. This open-slot style duct keeps wire bundles contained and accessible, reducing clutter and supporting clean, code-compliant installations. With a 4-inch width and 5-inch height profile, it accommodates high-density wiring runs where conductor volume and accessibility are both priorities. Electricians and panel builders use this duct as a core component of organized, serviceable electrical enclosure builds.

This wire duct is suited for use in industrial control panels, electrical enclosures, and automation cabinets in both commercial and industrial settings. It is typically installed horizontally or vertically alongside terminal blocks, DIN rail components, and other panel-mount devices. The per-foot pricing and purchasing structure allows installers to cut the duct to the exact length required for each run, minimizing waste on custom panel builds.

Key Features

• 4-inch width by 5-inch height profile handles high wire-fill applications
• Sold per foot for flexible, cut-to-length installation
• White finish for clean panel aesthetics and easy wire identification
• Open-slot design allows conductors to exit at any point along the run
• Suitable for horizontal and vertical mounting inside electrical enclosures

Compatibility

Designed as a standard open-slot wire management duct for use in electrical control panels and enclosures where organized conductor routing is required.

Installation Notes

Installation is typically performed by licensed electricians or panel builders during enclosure assembly or retrofit. De-energize all circuits and follow NFPA 70 (NEC) guidelines before routing conductors or securing duct to panel surfaces. Duct is commonly cut to length with a fine-tooth saw and secured using screws or adhesive mounting hardware appropriate for the enclosure material. Do not overfill the duct beyond the rated fill capacity to maintain wire accessibility and thermal performance.

Technical Specifications

• Width: 4 inches
• Height: 5 inches
• Color: White
• Unit of Measure: Per Foot
• UPC: 07498337600

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F4X5WH6
