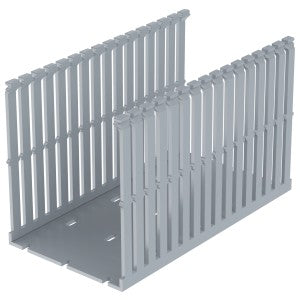

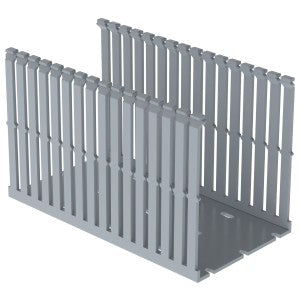

Panduit F4X5LG6-A Wire Duct Slotted Adh Screw 6 feet

Product Description

The PANDUIT F4X5LG6-A wire duct features a slotted design with adhesive and screw mounting. Constructed from lead-free PVC, it meets NFPA 79-2015 flame retardancy requirements and has a UL 94V-0 flammability rating. Designed with narrow slots for high-density terminal blocks, it includes scorelines for easy finger and sidewall removal.

• Narrow slot/finger design fits the spacing of high-density terminal blocks.
• Smooth corners and edges prevent abrasion to wiring and hands.
• Lead-free PVC material with UL 94V-0 flammability rating.

Product Highlights

This wire duct is ideal for managing wires in space-restricted applications, offering easy installation and reliable performance.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F4X5LG6-A
• Country of Origin: US - United States

Technical Specifications

• Category: Cables, Wires - Management
• Wire Ducts, Raceways: Wire Ducts, Raceways
• Width: 4.250" (107.95mm)
• Manufacturer: Panduit Corp
• Mounting Type: Adhesive, Screw
• Series: PANDUCT Type F
• Material: Poly-Vinyl Chloride (PVC)
• Packaging: Bulk
• Part Status: Active
• Wire Duct Type: Slotted (Raceway), Base
• Height: 5.000" (127.00mm)
• Base Product Number: F4X5LG
• Length: 6.00' (1.83m)
• Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Brand: PANDUIT
• Flammability Rating: UL94 V-0
• Includes: Base Only
• Manufacturer Part Number: F4X5LG6-A
• Numeric ID: 2510412
• Primary Type: Wiring Duct
• Type: Slotted
• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39131712
• Standard: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
• Connection Type: Standard Mounting Holes
• Color Family: Gray
• Nominal Height: 5 "
• Nominal Width: 4.25 "
• Approvals: CE, CSA, UL
• Slot Width: 0.2 "
