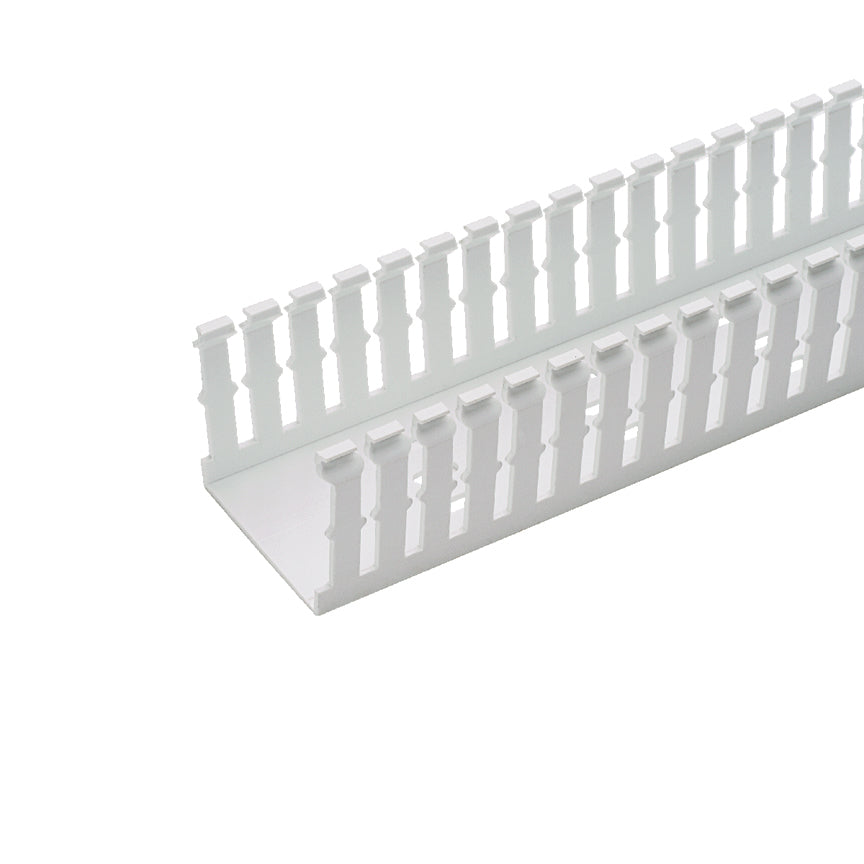

Panduit F4X4WH6 Narrow Slot Wiring Duct No Cover

Product Description

The Panduit F4X4WH6 narrow slot wiring duct is a crucial component for managing wiring in various applications. Constructed from lead-free PVC, this duct can withstand continuous use temperatures of up to one hundred twenty-two degrees Fahrenheit (fifty degrees Celsius). Its narrow finger design offers additional slots compatible with high-density terminal block setups.

• Specifications include UL94 flammability rating of V-0.
• It adheres to NFPA 79-2002 section fourteen point three point one for flame retardant material.

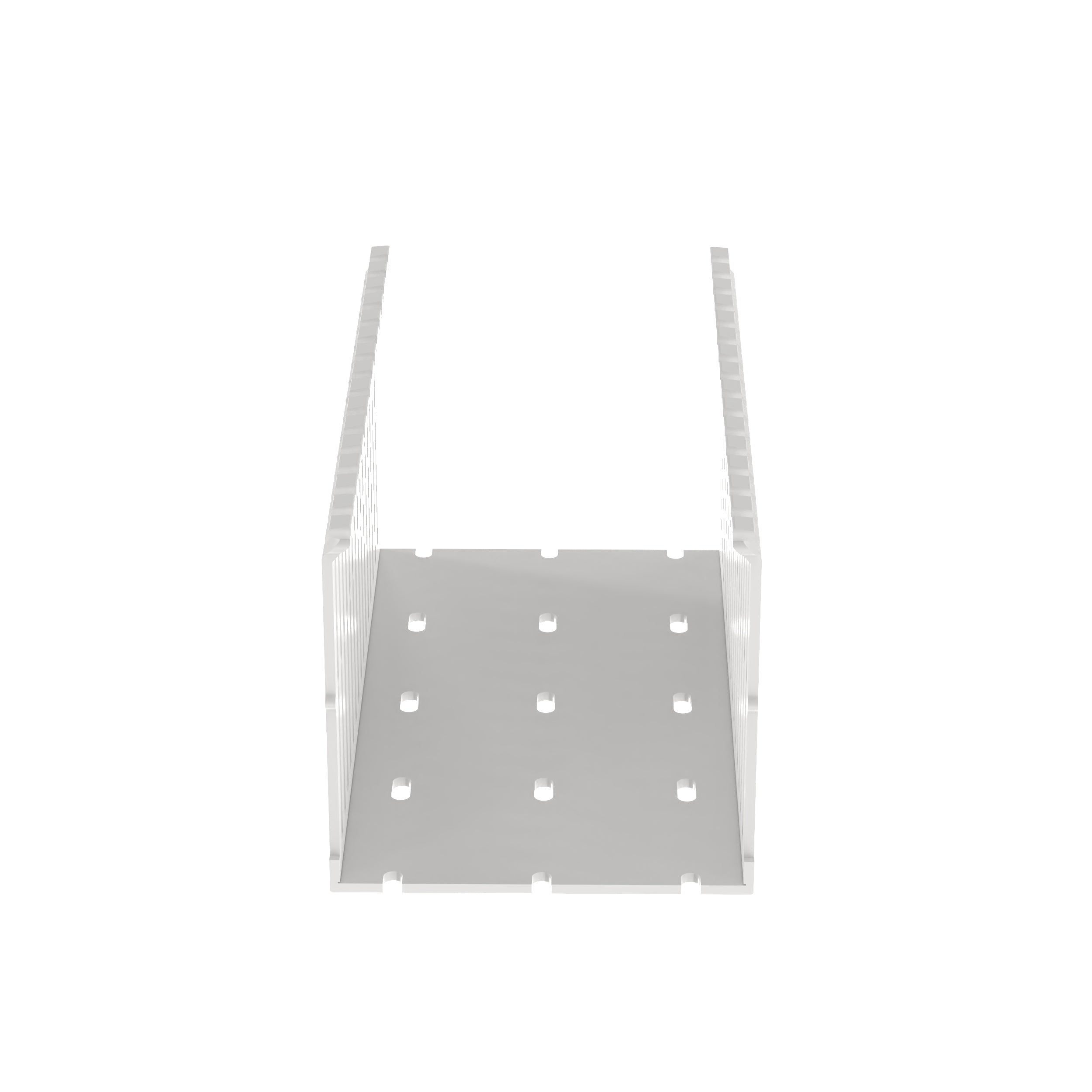

• Mounting holes are provided for easy installation.

Product Highlights

The F4X4WH6 duct is made with a special design for reducing labor and scrap costs during installation. Its dimensions allow for efficient organization of wiring, ensuring that applications remain safe and accessible.

Product Information

Standard Information

• Manufacturer: Panduit
• Part Number: F4X4WH6

Technical Specifications

• Type: Cable Routing / Wiring Duct
• Material: Plastic
• Fiber Duct Height x Width: 4 x 4 inches
• Components: Slotted Duct High Density
• UNSPSC Code: 39131712
• Slot Pitch: 0.2 inches
• Color: White
• Manufactured in: United States
