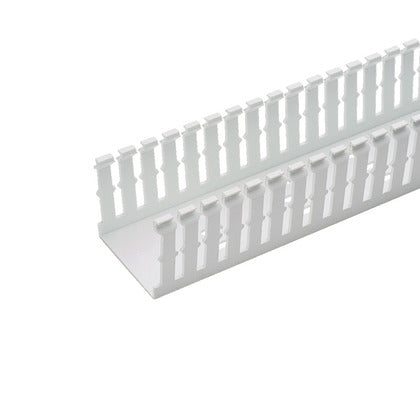

Panduit F4X3WH6 Wire Duct Slotted Screw 6 feet White

Product Description

The Panduit F4X3WH6 is a wire duct with a slotted design. Constructed from lead-free PVC, it features a narrow slot/finger design that fits the spacing of high-density terminal blocks. It has upper and lower scorelines for easy finger/sidewall section removal and mounting holes are provided. Base and cover length is 6 feet.

• Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Mounting holes provided
• Lead-free PVC
• Upper and lower scorelines allow for easy finger/sidewall section removal

Product Highlights

The Panduit F4X3WH6 wire duct is ideal for managing wires in high-density terminal block applications. Its slotted design and mounting holes provide easy installation.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F4X3WH6
• Country of Origin: USA

Technical Specifications

• Category: Cables, Wires - Management
• Wire Ducts, Raceways: Wire Ducts, Raceways
• Length: 6.00' (1.83m)
• Manufacturer: Panduit Corp
• Width: 4.250" (107.95mm)
• Series: PANDUCT Type F
• Mounting Type: Screw
• Packaging: Bulk
• Material: Poly-Vinyl Chloride (PVC)
• Part Status: Active
• Color: White
• Wire Duct Type: Slotted (Raceway), Base
• Base Product Number: F4X3WH
• Height: 2.990" (75.95mm)
• Applications: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Size: 4.00 x 3.00
• TC Connection: Mounting Holes
• Type: Base Wiring Duct
• Sub Brand: Panduct
• Overall Length: 6 ft
• Thickness: 0.1 IN
• Flammability Rating: UL94V-0
• Includes: Base Only
• Primary Type: Wiring Duct
• Fiber Duct H x W: 4" X 3"
• Finish: WHITE
• Components: SLOTTED DUCT HIGH DENSITY
• UL Recognized continuous use temperature: 122F (50C)
• Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
