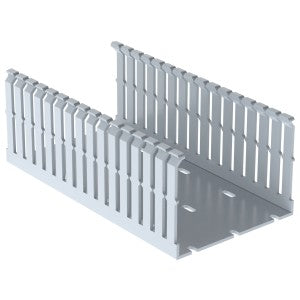

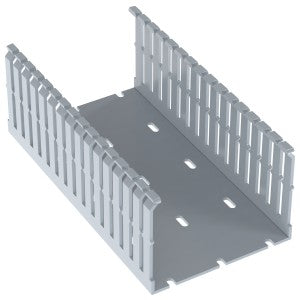

Panduit F4X3LG6-A Panduct Base Wiring Duct 4 inches x 3 inches

Product Description

The PANDUIT F4X3LG6-A Panduct Lead-Free PVC Narrow Slot Adhesive Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0. It is 4" x 3" (101.6 mm x 76.2 mm) and 6' (1.83 m) long.

• Narrow slot/finger design closely matches spacing of high-density components
• Upper and lower scorelines allow for easy finger/sidewall section removal
• UL 94 flame class of V-0

Product Highlights

The F4X3LG6-A Panduct wiring duct is ideal for cable management in data centers, telecommunications equipment rooms, and enterprise cabling applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F4X3LG6-A
• Country of Origin: Unknown

Technical Specifications

• Brand: Panduct
• Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Material: PVC
• Mounting Type: Adhesive-Backed
• Color: Light Gray
• Flammability Rating: UL94 V-0
• Color Family: Gray
• Height: 3.12 in.
• Width: 4.25 in.
• Type: Type F
• Includes: Base and Cover
• Slot Size: 0.2
• Length: 6
• Manufacturer: PANDUIT CORP
• Manufacturer Part Number: F4X3LG6-A
• Packaged Quantity: 6
• Product Line: Panduct
• Product Name: 6 ft Panduct Type F - Narrow Slot Wiring Duct
• Product Type: Cable Routing
• Slot Width (In.): 0.2
• Overall Height (mm): 79.2
• Overall Width (In.): 4.25
• Slot Width (mm): 5
• Overall Width (mm): 108
• Overall Height (In.): 3.12
• Wiring Duct Type: F
• Wiring Duct Style: Narrow Slot Wiring Duct
• Product Class: Wire Routing, Management & Protection
• Mount Method: Mounting Holes with Adhesive
• Standards Met: RoHS Compliant, UL Recognized, CE Compliant
