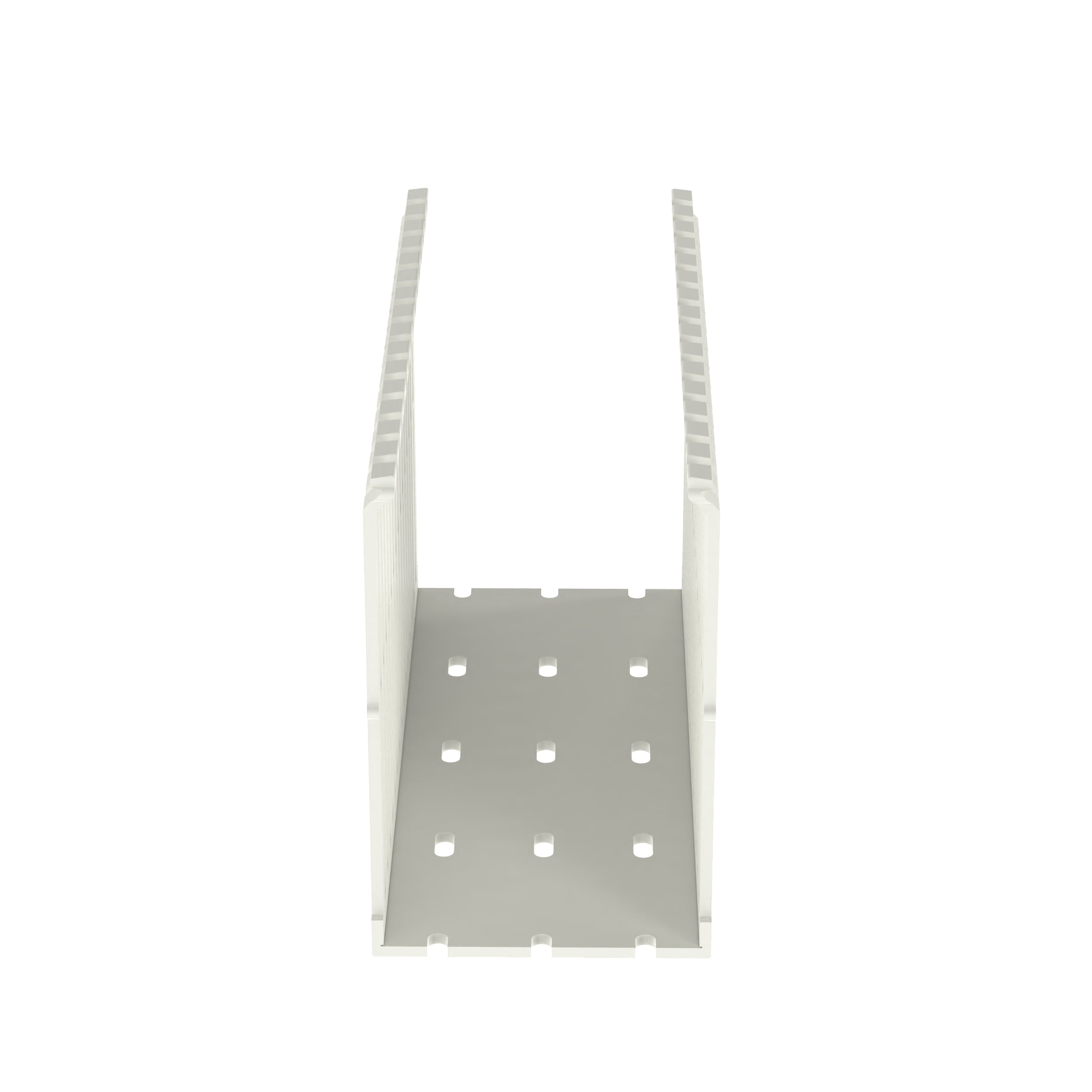

Panduit F3X5WH6 Narrow Slot Wiring Duct 3 inches x 5 inches x 6 ft

Product Description

The Panduit F3X5WH6 narrow slot wiring duct is made of lead-free PVC and measures 3 inches x 5 inches x 6 feet. Features a narrow slot/finger design that closely matches the spacing of high-density components. Mounting holes are provided for easy installation. Base and covers are sold separately.

• Narrow finger and slot design closely matches the spacing of high density components
• Upper and lower scorelines allows easy finger and sidewall section removals
• Provided with mounting holes

Product Highlights

The Panduit narrow slot wiring duct is suitable for use with high density terminal blocks and other hardware. UL Recognized and RoHS compliant.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F3X5WH6
• Country of Origin: USA

Technical Specifications

• Components: SLOTTED DUCT STANDARD
• Fiber Duct H x W: 3" X 5"
• Finish: WHITE
• Material: PVC
• Type: CABLE ROUTING / WIRING DUCT
• Adhesive Backed: Mounting Holes
• Application: Narrow slot/finger design provides more slots to fit the spacing of high-density
• Color: White
• Depth: 5 in
• Length: 6 ft
• Manufacturer Part Number: F3X5WH6
• Mounting Type: Hole
• Slot Size: 0.2 in
• Slot Type: Narrow Slot
• Standards/Approvals: ARRA Compliant|ASTM D882|Buy American Act Compliant|CE Marked|CSA Certified|NFPA 79|RoHS Compliant|UL Listed|UL94 V-0 Flammability Rated
• Width: 3.25 In.
• Height: 5.1 IN
• Standard: RoHS Compliant; UL Recognized; CE Compliant; CSA Approved
• Connection: Mounting Holes
• Slot Pitch: 0.2 In.
• Slot Style: Slotted
• Family group: WIRE MANAGEMENT/ID
• Manufacturer: PANDUIT
• Size: 3.00 x 5.00
• Packaging: Bulk
• Wire Duct Type: Slotted (Raceway), Base
• Base Product Number: F3X5WH
• External Height - Metric: 129.5mm
• External Width - Metric: 82.5mm
• Length - Metric: 1.83m
• External Height - Imperial: 5.1"
• External Width - Imperial: 3.25"
• Length - Imperial: 6ft
• Raceway / Duct Color: White
• Raceway / Duct Material: PVC (Polyvinylchloride)
• RoHS Compliant: Yes
• RoHS Phthalates Compliant: Yes
• Item Diameter: 5.10"
