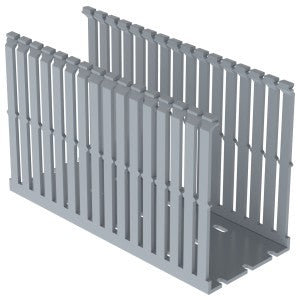

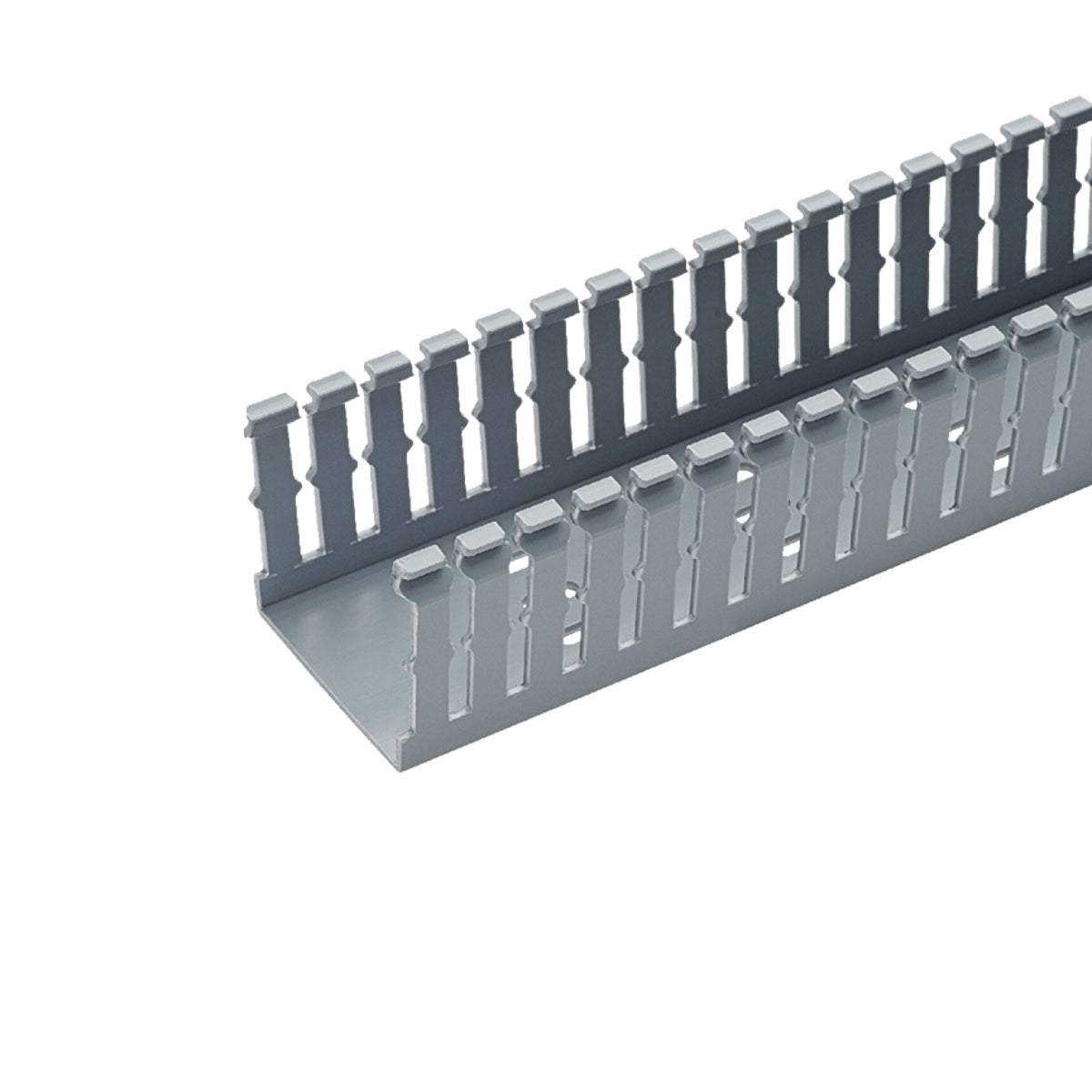

Panduit F3X5LG6 Wiring Duct, 3 x 5 x 6ft

Product Description

The Panduit F3X5LG6 wiring duct features a narrow slot/finger design that closely matches the spacing of high-density components. It is made of lead-free PVC and measures 3 inches in width, 5 inches in depth and 6 feet in length. Upper and lower scorelines allow for easy finger/sidewall section removal.

• Narrow finger and slot design closely matches the spacing of high density components
• Upper and lower scorelines allows easy finger and sidewall section removals
• Provided with mounting holes

Product Highlights

The Panduit F3X5LG6 wiring duct is ideal for high-density terminal block applications. It provides more slots to fit the spacing of components.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F3X5LG6
• Country of Origin: US

Technical Specifications

• Color: Light Gray
• Depth: 5 in
• Width: 3 in
• Length: 6 ft
• Material: PVC
• Slot Size: 0.2 in
• Slot Type: Narrow Slot
• Thickness: 0.11 in
• Mounting Type: Hole
• Adhesive Backed: No
• Country of Origin: US
• Brand: Panduit
• Sub Brand: Panduct
• Made in USA: Yes
• Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Connection: Mounting Holes
• Slot Pitch: 0.2 IN
• Slot Style: Slotted
• Standard: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
• Item Type: Base Wiring Duct
• Size: 3.00 x 5.00
• Applications: Indoor
• TC Connection: Standard
• Type: Base Type F Narrow slot
• Overall Length: 6 ft
• Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
• ECCN: EAR99
• UNSPSC: 39131712
• Flammability Rating: UL94V-0
• Color Family: Gray
• Height: 5.1 in.
• Mount Type: Mounting Holes
• Overall Width: 3.25 in, 82.6 mm
• Overall Height: 129.5 mm, 5.1 in
• Environmental Initiative: ROHS
• Compliant: Yes
