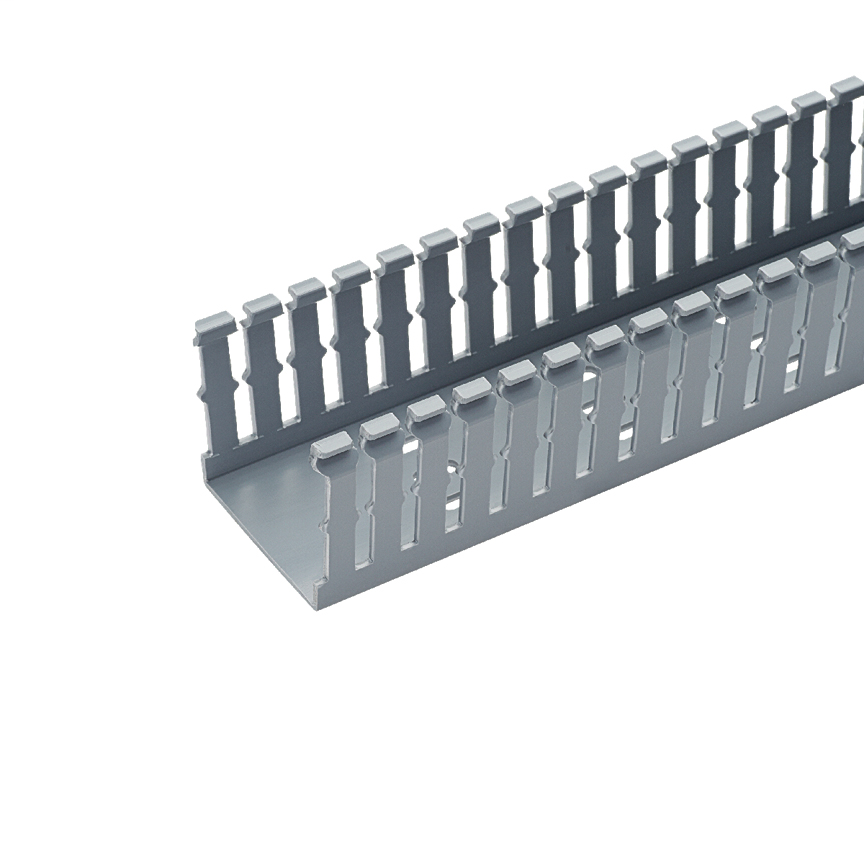

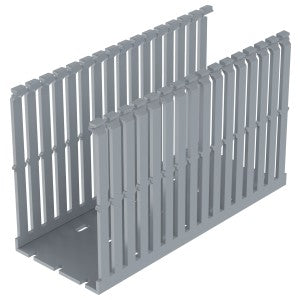

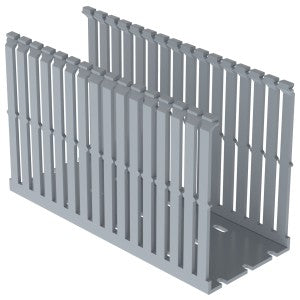

Panduit F3X5LG6-A Panduct Type F Narrow Slot Wiring Duct 3 inches x 5 inches x 6ft

Product Description

The PANDUIT F3X5LG6-A Panduct Type F narrow slot wiring duct enhances cable organization with a 3-inch width and 5-inch height for efficient cable management. Constructed from durable, lead-free PVC, this 6-foot duct features adhesive and mounting holes for versatile installation. Its narrow 0.2-inch slot width securely accommodates wires while maintaining a compact profile.

• Enhances cable organization
• Features a slim 0.2-inch slot width
• Made from durable lead-free PVC

Product Highlights

Ideal for managing and organizing wires in both industrial and residential settings.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F3X5LG6-A
• Country of Origin: USA

Technical Specifications

• Manufacturer: Panduit
• Manufacturer Part Number: Panduit F3X5LG6-A
• Mount Type: Mounting Holes with Adhesive
• Overall Width: 3.25 in, 82.6 mm
• Overall Height: 5.1 in
• Overall Length: 6 ft
• Material: Lead-Free PVC
• Slot Width: .2 in, 5.1 mm
• Product Type: Narrow Slot Wiring Duct
• Environmental Initiative: ROHS
• Compliant: Yes
• Series: PANDUCT Type F
• Wire Duct Type: Slotted (Raceway), Base
• Flammability Rating: UL94V-0
• Connection Type: Standard Mounting Holes
• Type: Type F Narrow Slot
• Indoor: Y
• Size: 3.00 x 5.00
• TC Connection: Standard
• Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
• Color: Light Gray
• Brand: Panduct
• Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
