Product Description

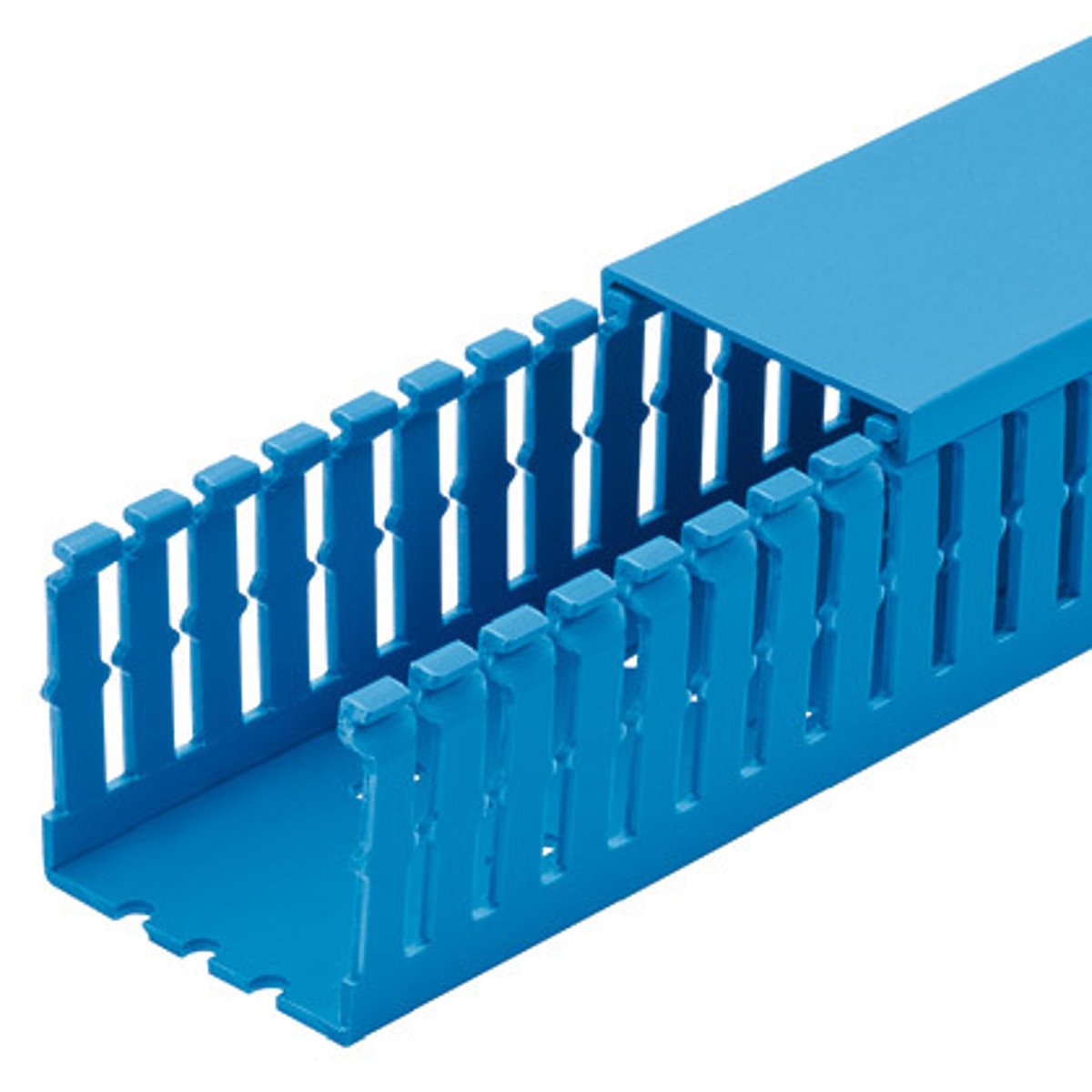

The Panduit F3X4IB6 Base Wiring Duct is made from lead-free PVC. It features a narrow slot design that fits high-density components. This wiring duct has upper and lower scorelines for easy removal of sidewall sections. It meets the UL 94 flame class V-0 and can handle a continuous use temperature of 122 degrees Fahrenheit (50 degrees Celsius). Mounting holes are included for installation. This product is 3 inches wide, 4 inches deep, and 6 feet long. The cover is sold separately.
- Lead-free PVC material
- UL recognized with continuous use temperature of 122F
- Easy to install with provided mounting holes
Product Highlights
This wiring duct is suitable for high-density terminal block applications.
Product Information
Standard Information
-
Catalog Number: F3X4IB6
-
Manufacturer: Panduit
Technical Specifications
-
Width: 3.25 inches
-
Depth: 4 inches
-
Length: 6 feet
-
Material: PVC
-
Color: Intrinsic Blue
-
Slot Size: 0.2 inches
-
Connection: Mounting Holes
-
Special Features: Narrow Slotted
-
Standard: RoHS Compliant, UL Recognized, CE Compliant
