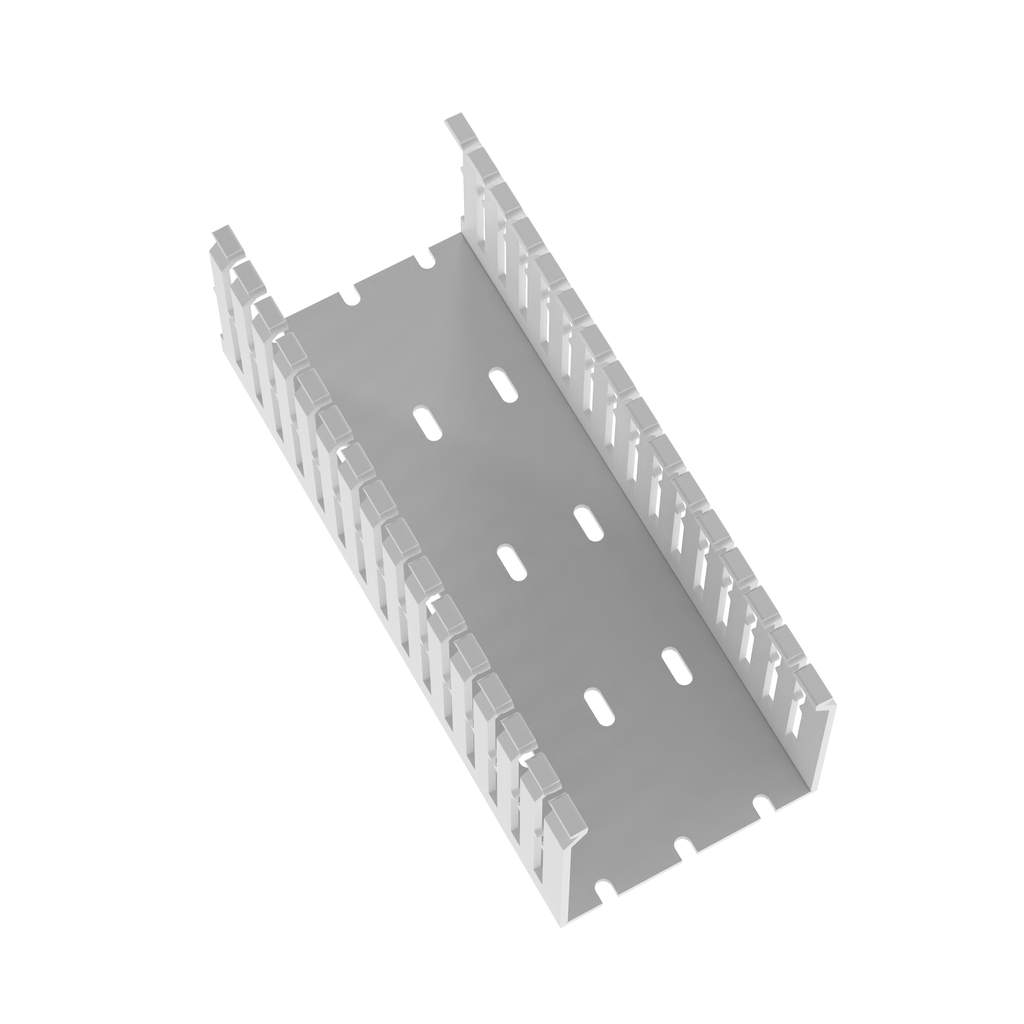

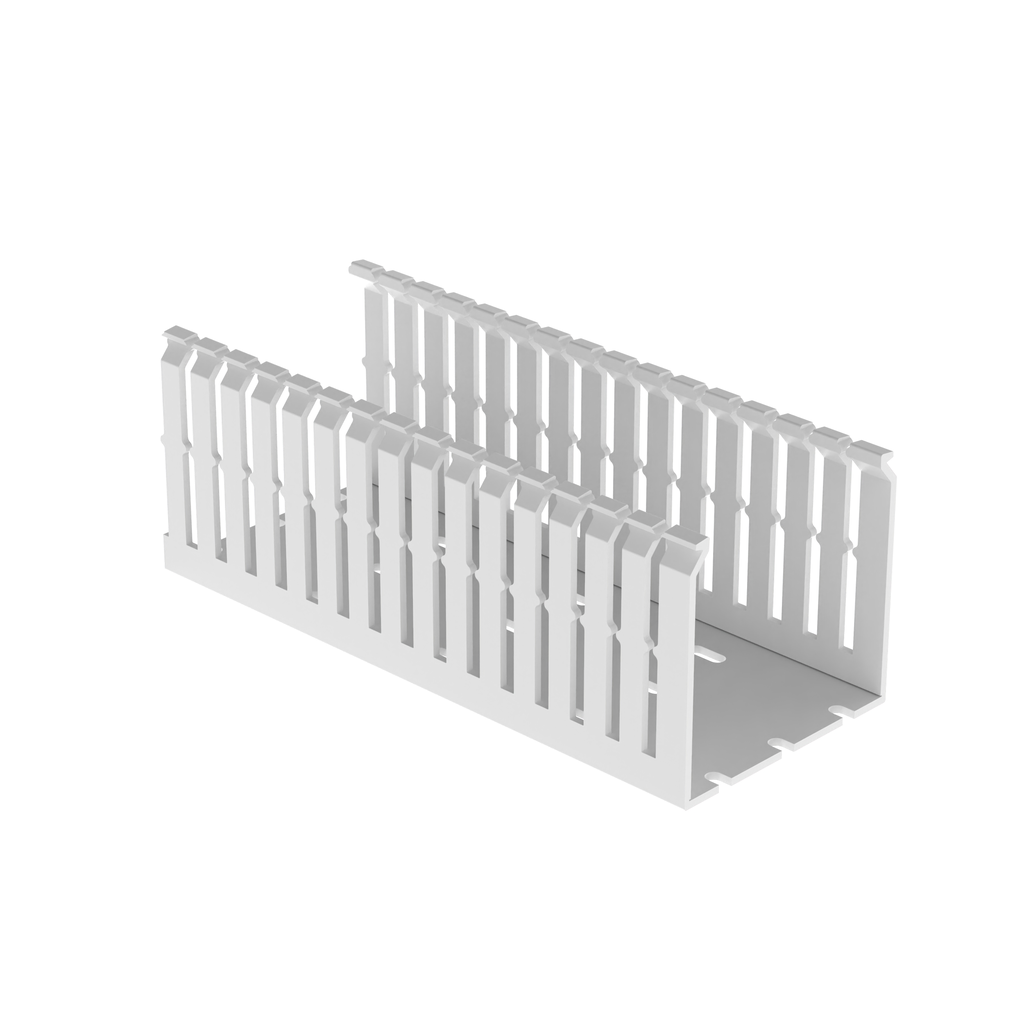

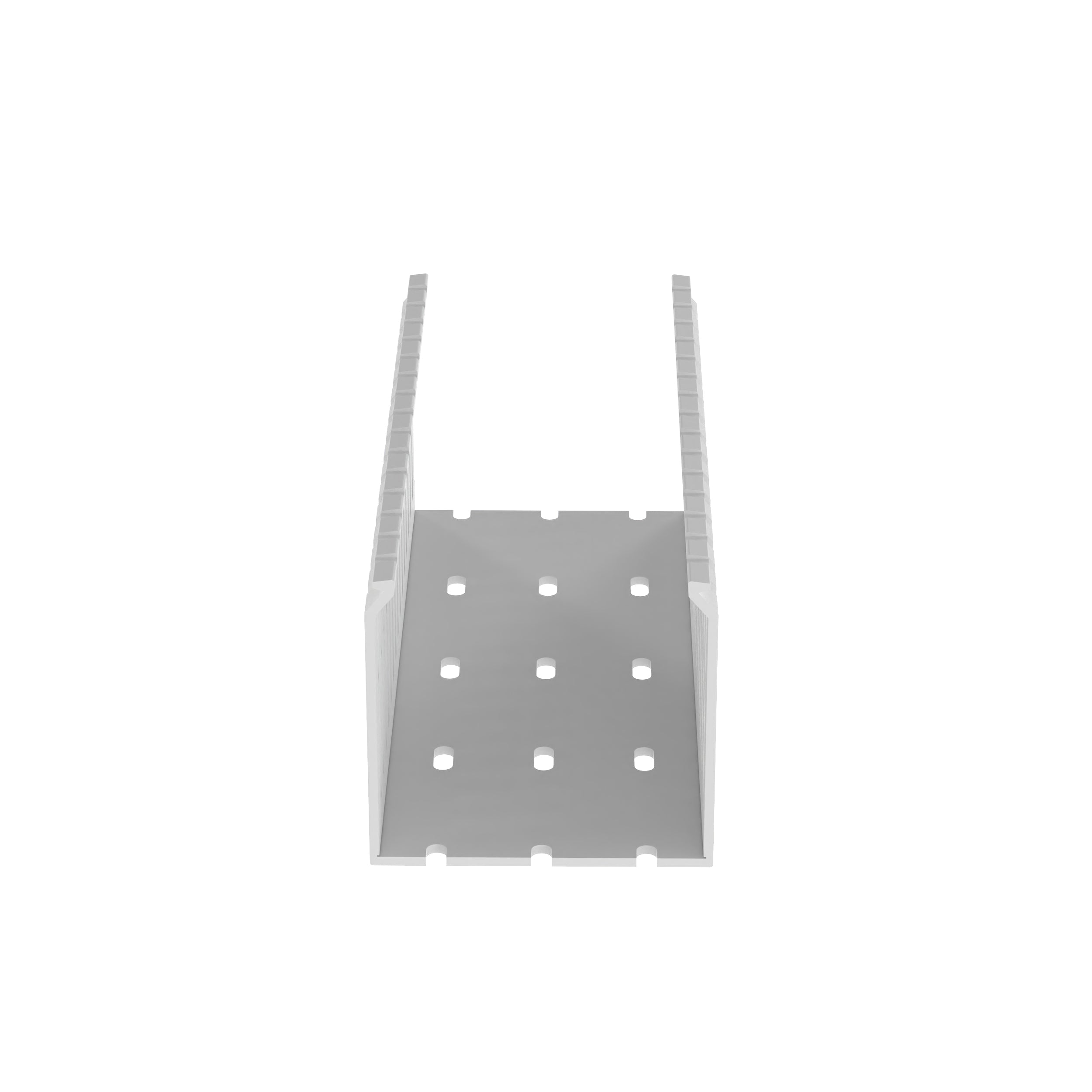

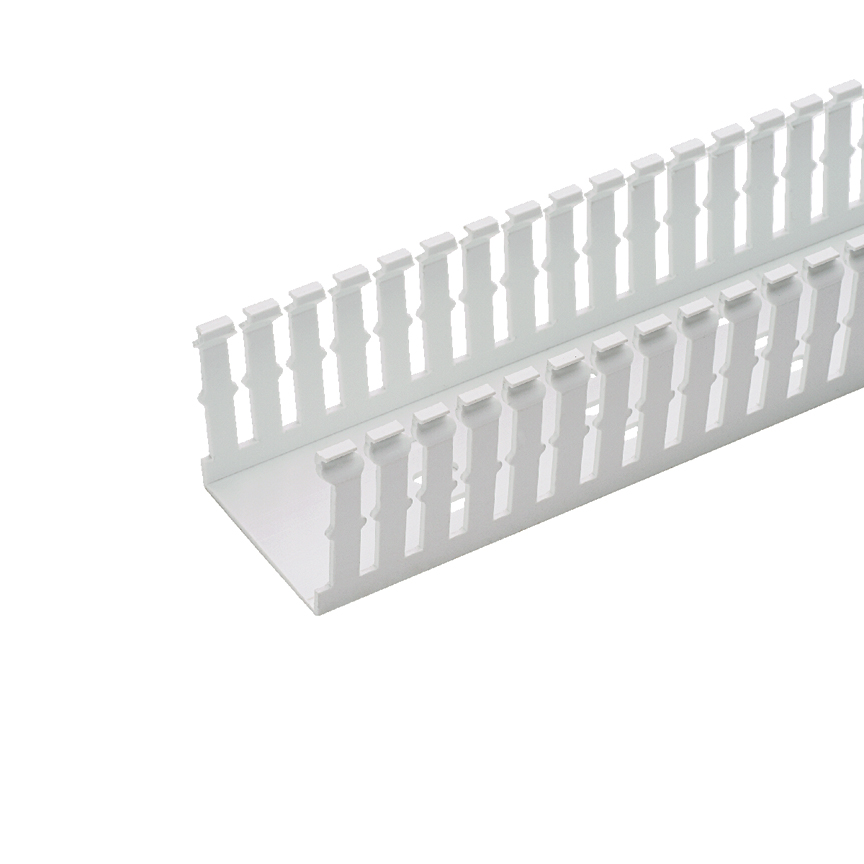

Panduit F3X3WH6 Narrow Slotted Duct, PVC, 3 inches x 3 inches x 6 FT

Product Description

The PANDUIT F3X3WH6 is a narrow slot wiring duct, 3in. W x 3in. H, 6 FT. length, made of lead free PVC. The narrow finger design provides more slots to fit the spacing of high terminal blocks and other hardware. Mounting holes are provided. Covers are sold separately.

• Narrow finger wiring duct
• Made of lead free PVC
• White color

Product Highlights

The PANDUIT F3X3WH6 is ideal for high-density terminal block applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F3X3WH6
• Country of Origin: US - United States

Technical Specifications

• ECCN: EAR99
• Country of Origin: US - United States
• UPC: 07498337576
• UNSPSC: 39131712
• Brand: Panduct
• Standard: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
• Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Connection Type: Standard Mounting Holes
• Material: PVC
• Type: Type F Narrow Slot
• Color: White
• Flammability Rating: UL94V-0
• Color Family: White
• Height: 3.13 in.
• Width: 3.25 in.
• Length: 6 ft
• For Indoor use: For Indoor use
• Mounting Type: Standard Mounting Hole
• Size: 3.00 x 3.00
• Slot Size: 5 mm
• Tc Connection: Standard
• Pkg Qty: 6
• Sub Brand: Panduct
• 12-Digit UPC: 074983375769
• Product UPC: 07498337576
• Depth: 3 Inch
• Overall Length: 6 ft
• Buy American Compliant: Y
• Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
