Product Description

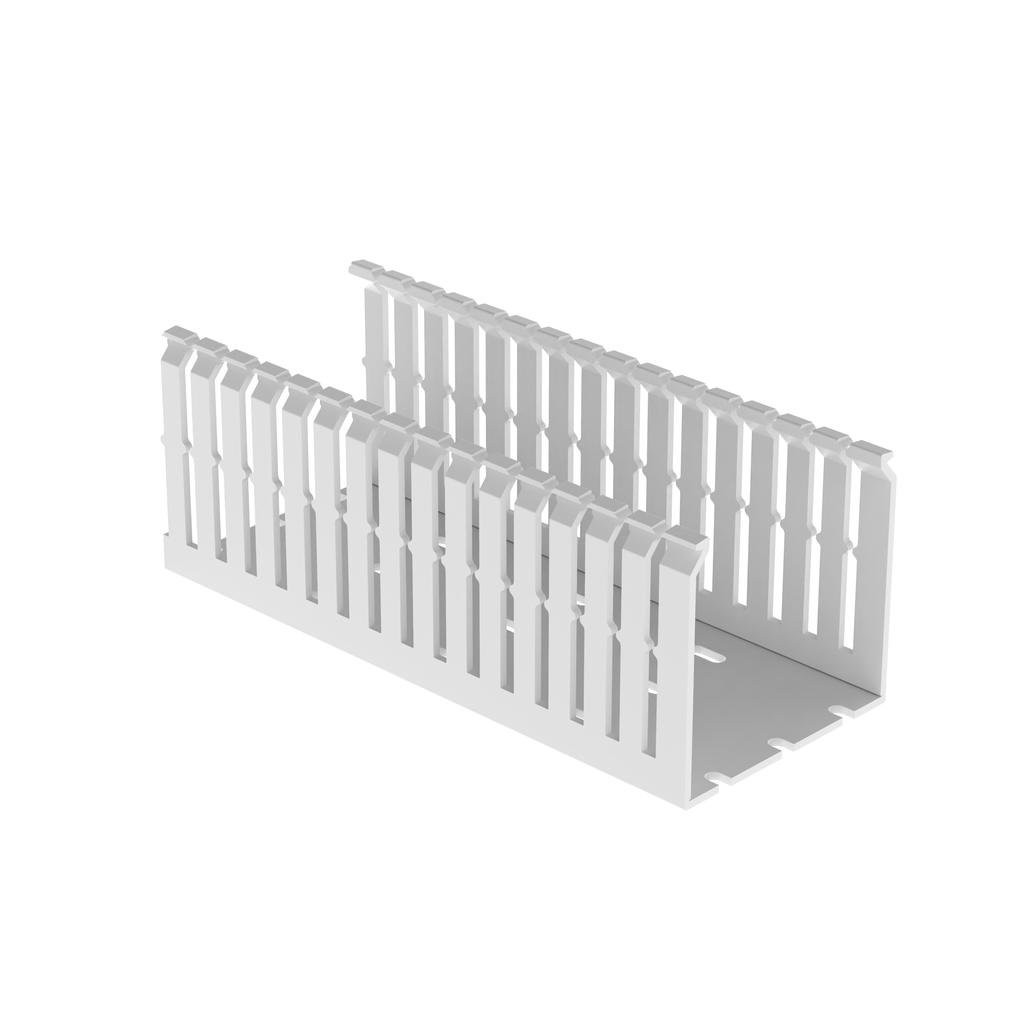

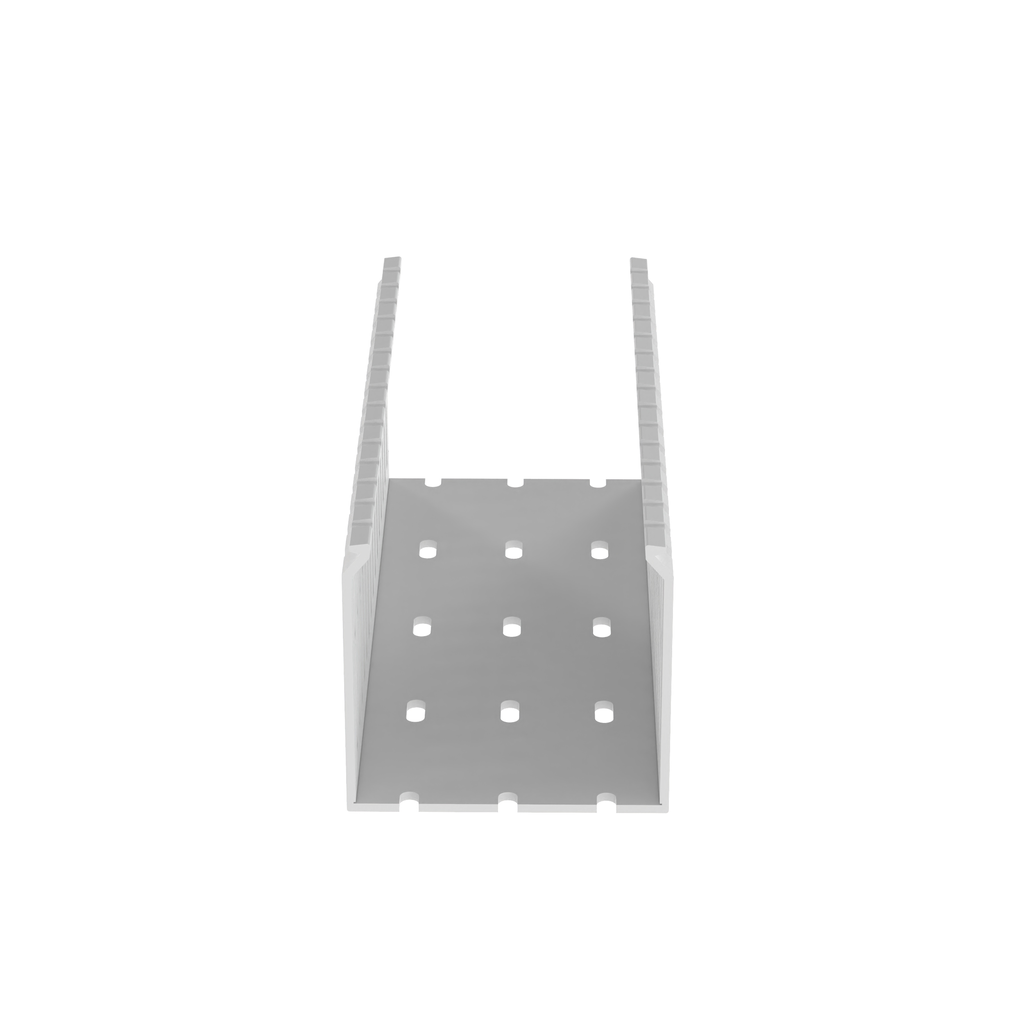

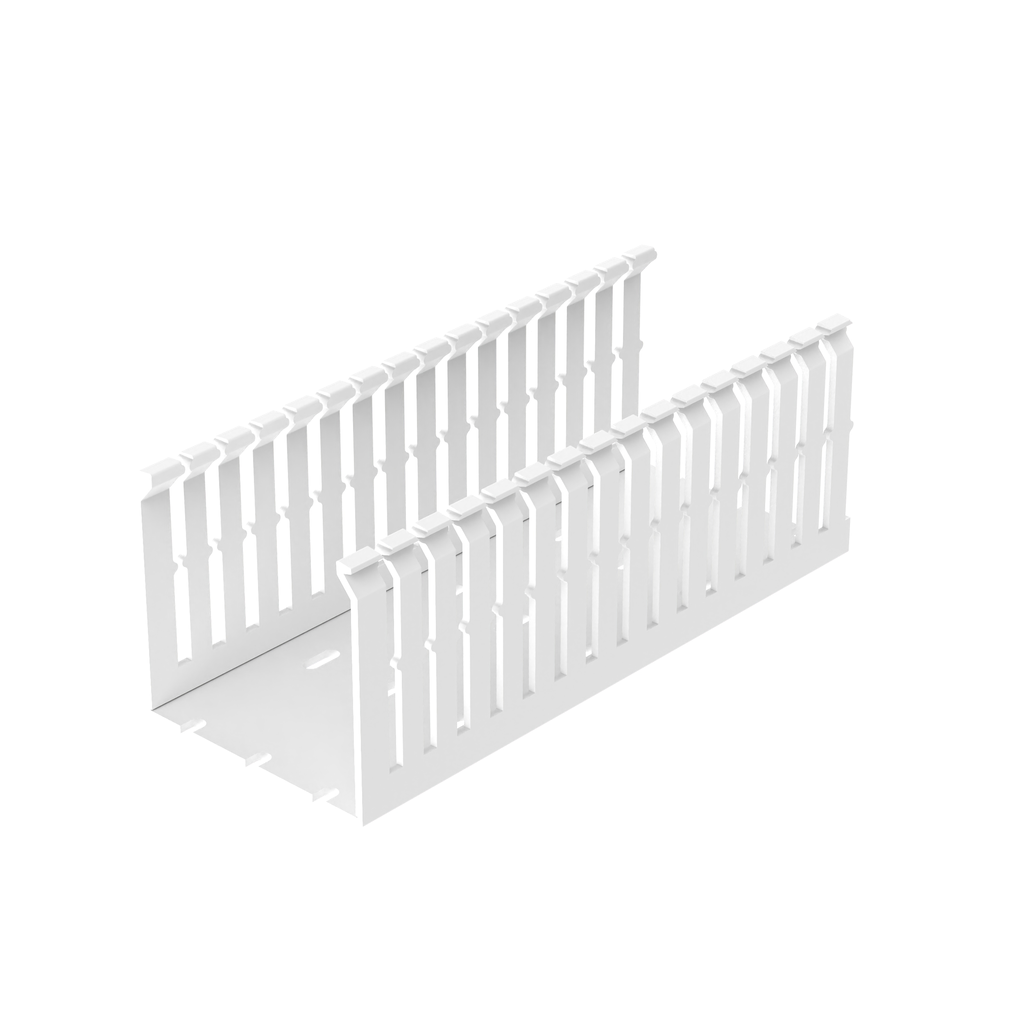

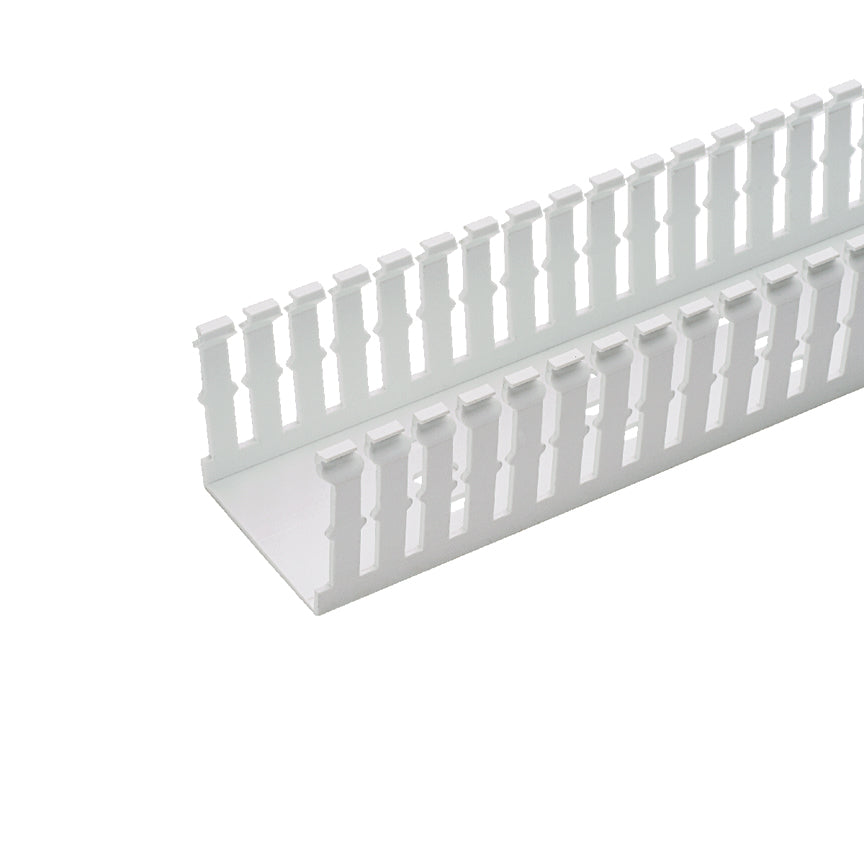

The PANDUIT F3X3WH6-A is a type F narrow slot wiring duct, 3in. W x 3in. H, 6 FT. length, made of PVC. The narrow finger design provides more slots to fit the spacing of high terminal blocks and other hardware. It is designed for DIN rails to be mounted above instead of beside them, which can equal up to 30% space savings.
- Narrow finger wiring duct
- Made of lead free PVC
- Provided with mounting holes.
- Narrow slot/finger design provides more slots to fit the spacing of high-density terminal blocks and other hardware
Product Highlights
The PANDUIT F3X3WH6-A narrow slot wiring duct is made of lead free PVC and features mounting holes. It is suitable for high-density terminal block applications.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: F3X3WH6-A
-
Country of Origin: US - United States
Technical Specifications
-
ECCN: EAR99
-
Country of Origin: US - United States
-
UPC: 07498337576
-
UNSPSC: 39131712
-
Brand: Panduct
-
Standard: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
-
Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
-
Connection Type: Standard Mounting Holes
-
Material: PVC
-
Type: Type F Narrow Slot
-
Color: White
-
Flammability Rating: UL94V-0
-
Color Family: White
-
Height: 3.13 in.
-
Width: 3.25 in.
-
Manufacturer Part Number: F3X3WH6-A
-
Mounting Type: Adhesive-Backed
-
Primary Type: Wiring Duct
-
Protection Class: Duct, Wiring
-
Series: Panduct PanelMax Series
-
Special Features: Adhesive Backed, Flame Retardant, Narrow Slot
-
Size: 3.00 x 3.00
-
TC Connection: Mounting Holes with Adhesive
-
Sub Brand: Panduct
-
12-Digit UPC: 074983339044
-
GTiN: 00074983339044
-
Product UPC: 07498333904
-
Overall Length: 6 ft
-
Buy American Compliant: Y
-
Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
