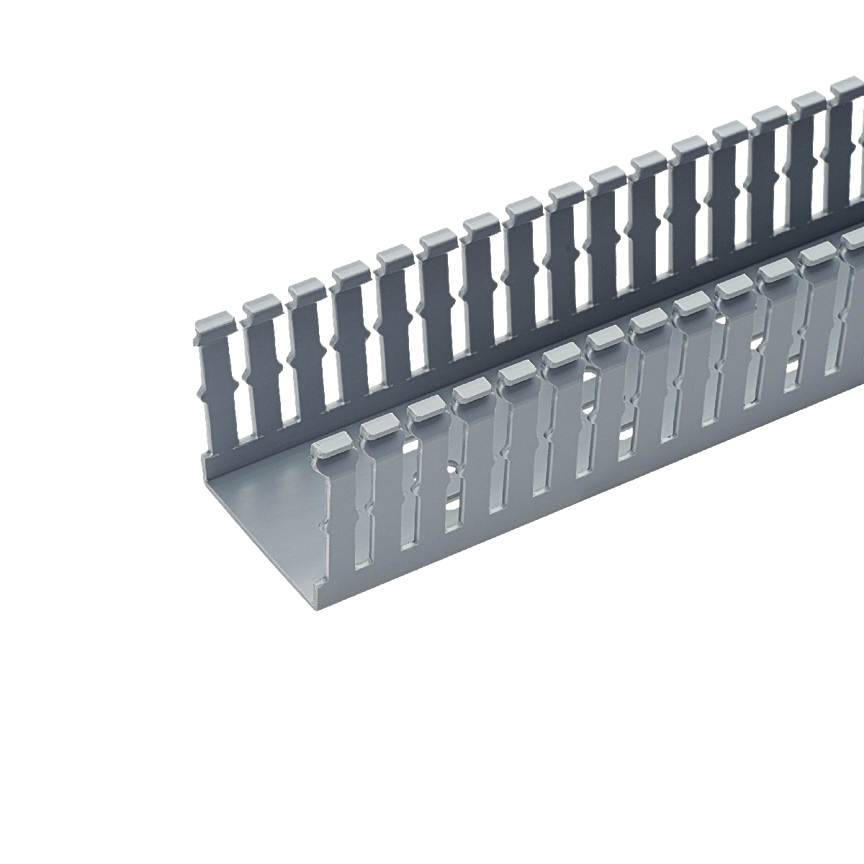

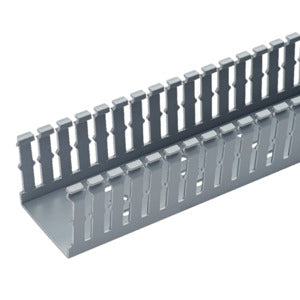

Panduit F3X3LG6 Type F Narrow Slot Wiring Duct 6 ft

Product Description

The PANDUIT F3X3LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. Mounting holes are provided. Cover sold separately.

• Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Upper and lower scorelines allow for easy finger/sidewall section removal
• UL 94 flame class of V-0

Product Highlights

The F3X3LG6 wiring duct is made of lead-free PVC and is UL 94 flame class of V-0. It has a UL recognized continuous-use temperature up to 122°F (50°C).

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F3X3LG6
• Country of Origin: US - United States

Technical Specifications

• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39131712
• Brand: Panduit
• Standard: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
• Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Connection Type: Standard Mounting Holes
• Material: PVC
• Type: Type F Narrow Slot
• Flammability Rating: UL94V-0
• Color Family: Gray
• Height: 3.13 in.
• Width: 3.25 in.
• Quantity: 6 Foot
