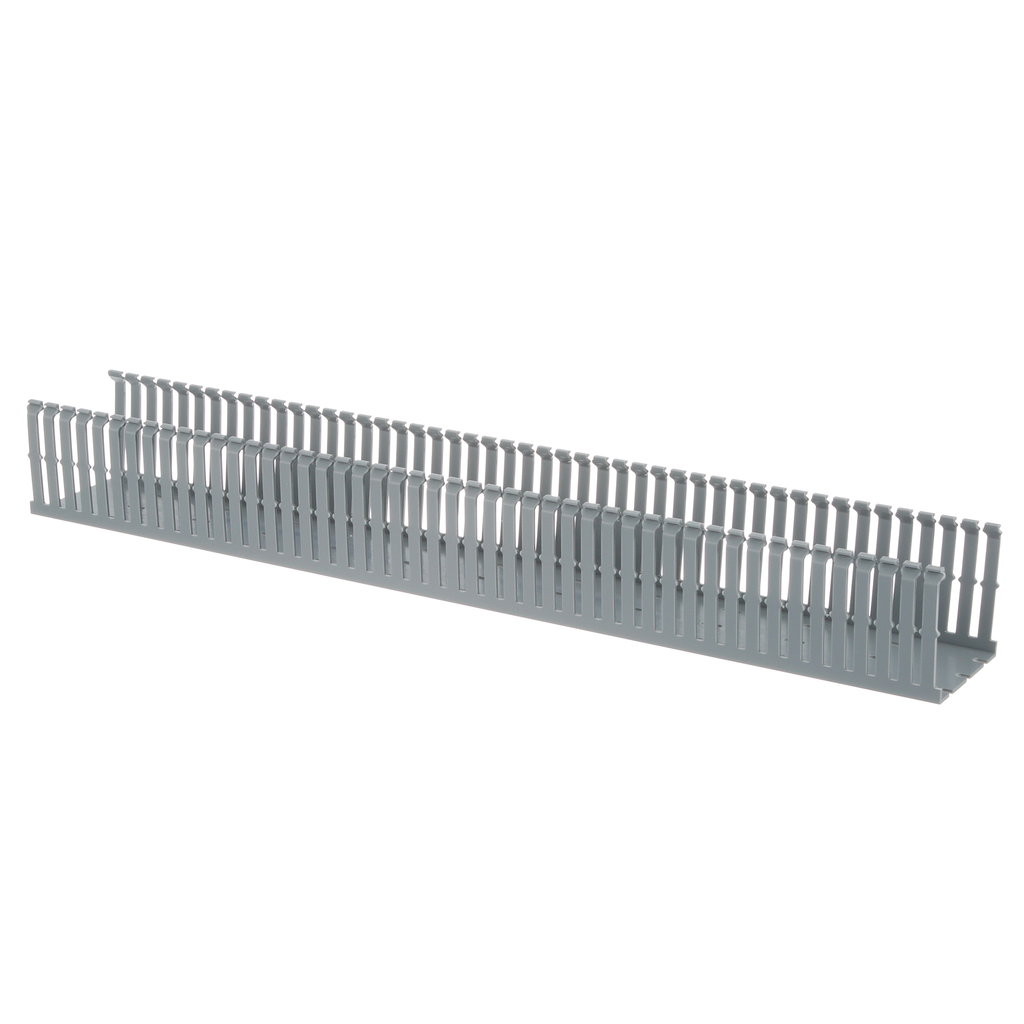

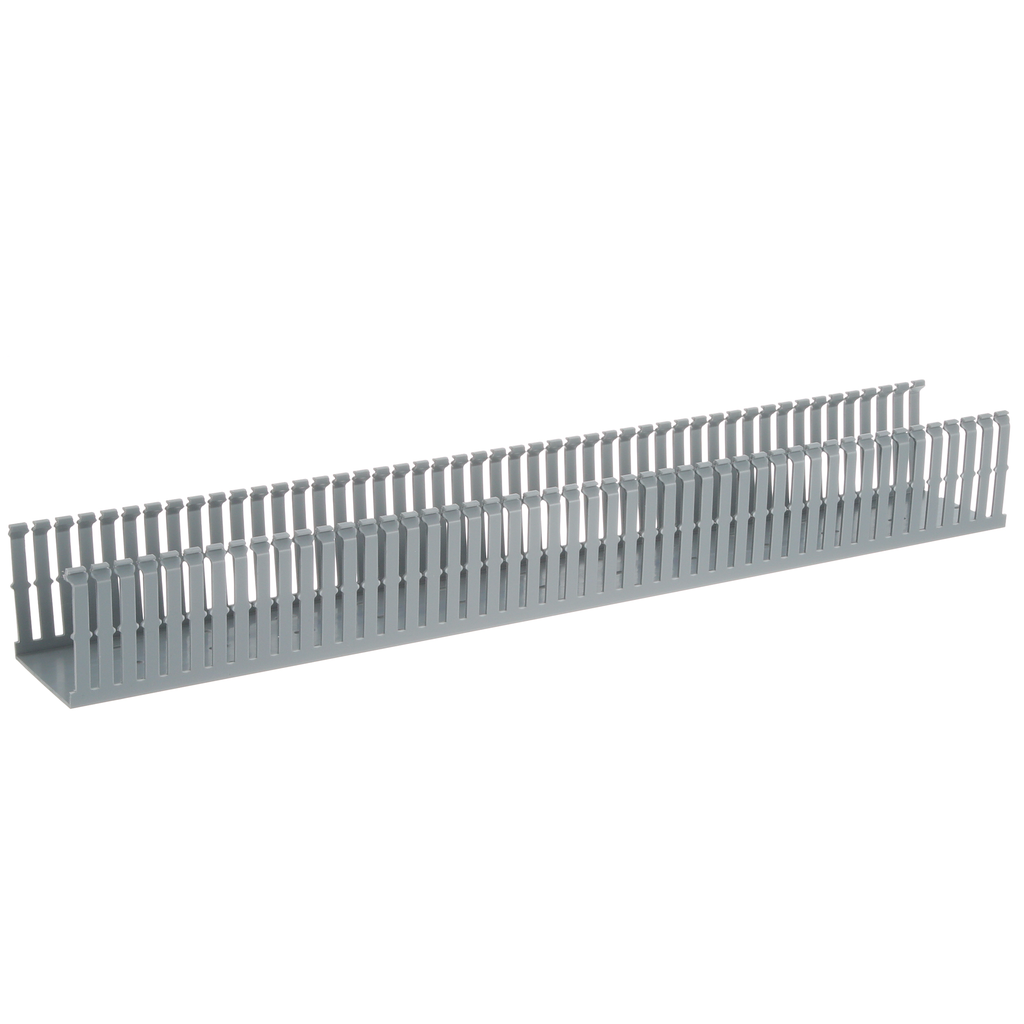

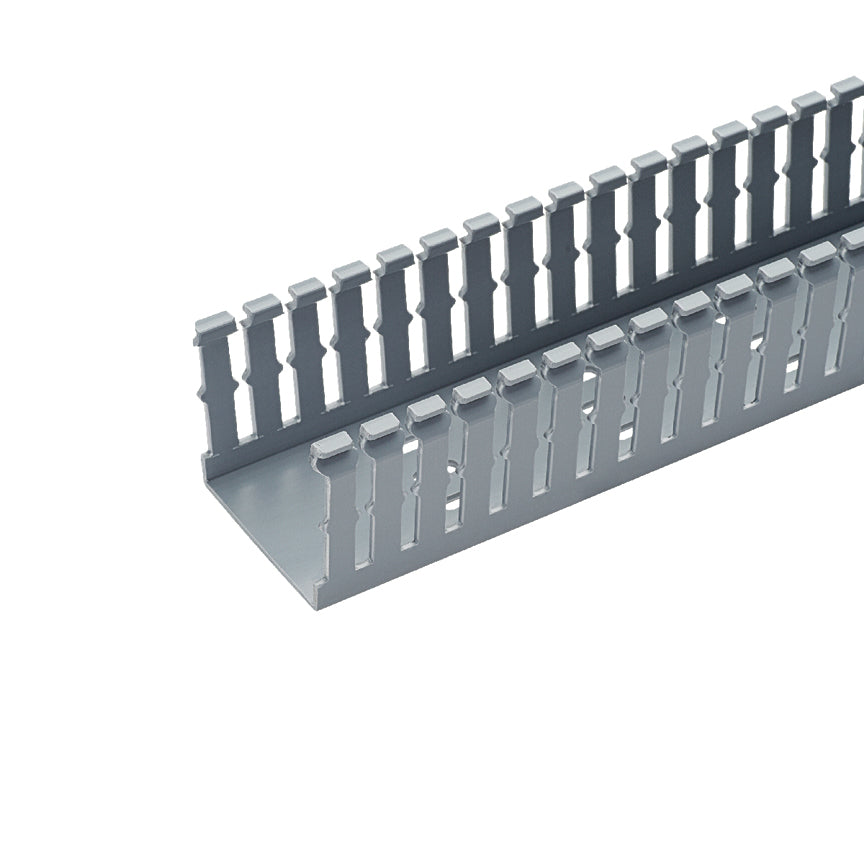

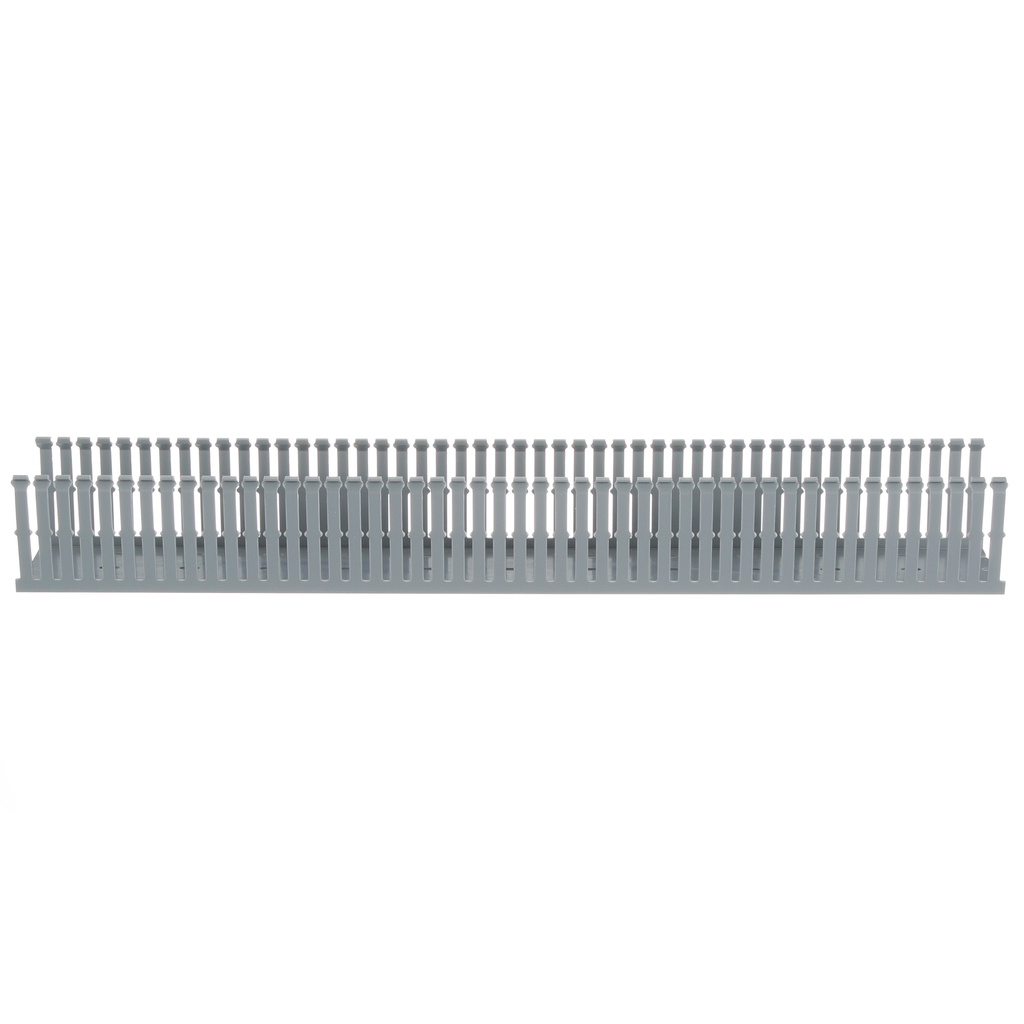

Panduit F3X3LG6-A Panduct Base Wiring Duct 6 feet Adhesive

Product Description

The PANDUIT F3X3LG6-A Panduct® type F narrow slot wiring duct measures 3 W x 3 H and 6' in length. Constructed from PVC, it features an adhesive backing and a light gray finish. The narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications.

• Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Adhesive-Backed
• RoHS Compliant

Product Highlights

The PANDUIT F3X3LG6-A wiring duct is ideal for use in high-density terminal block applications.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F3X3LG6-A
• Country of Origin: USA

Technical Specifications

• ECCN: EAR99
• UNSPSC: 39131712
• Brand: Panduct ®
• Standard: RoHS Compliant, UL Recognized, CE Compliant
• Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Material: PVC
• Mounting Type: Adhesive-Backed
• Color: Light Gray
• Flammability Rating: UL94 V-0
• Color Family: Gray
• Height: 3.13 in.
• Width: 3.25 in.
• Applications: For Indoor use
• Size: 3.00 x 3.00
• Slot Size: 5 mm
• Type: Type F
• Brand Name: Panduit
• Sub Brand: Panduct
• Depth: 3 Inch
• Length: 6 Foot
• Overall Length: 6 ft
• Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
