Product Description

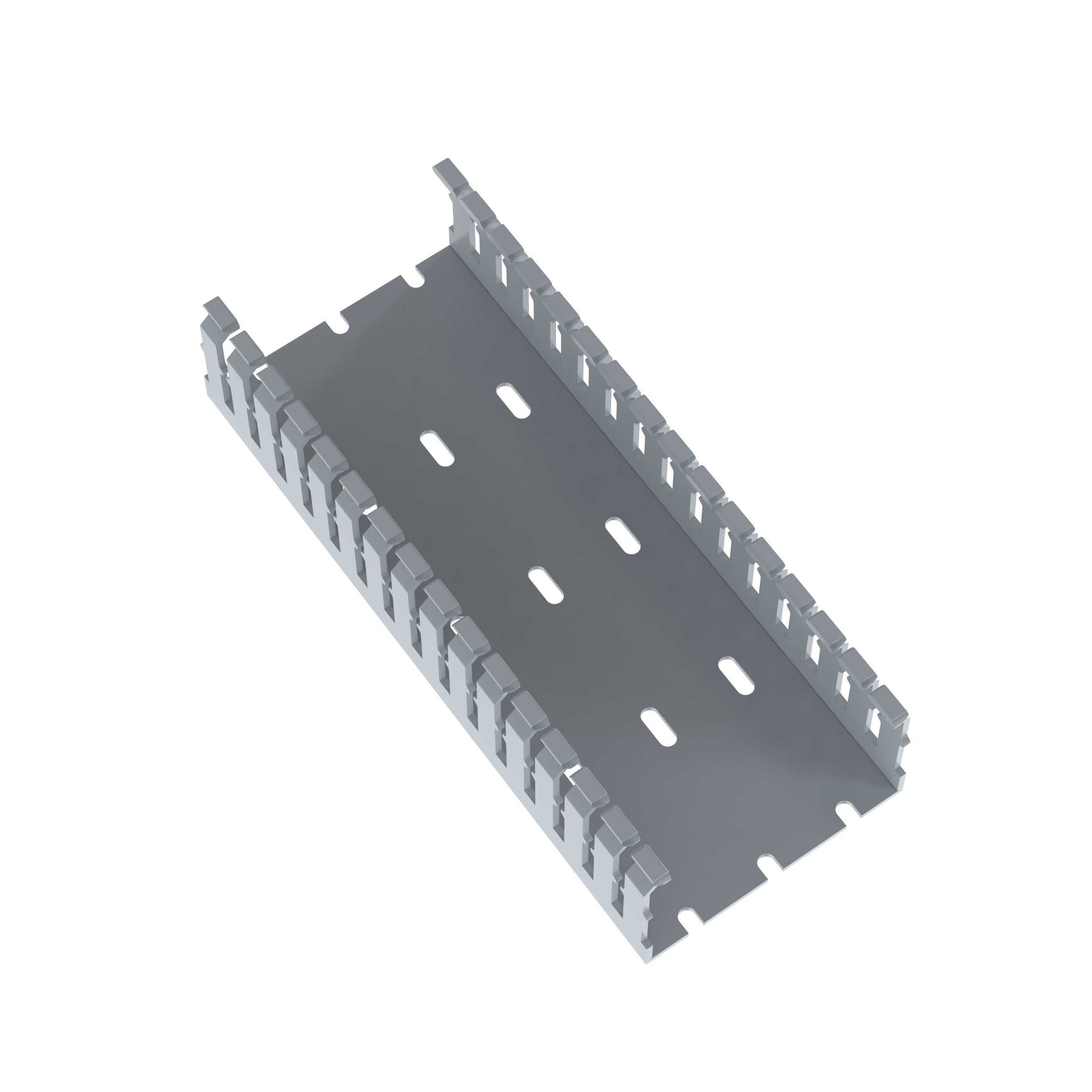

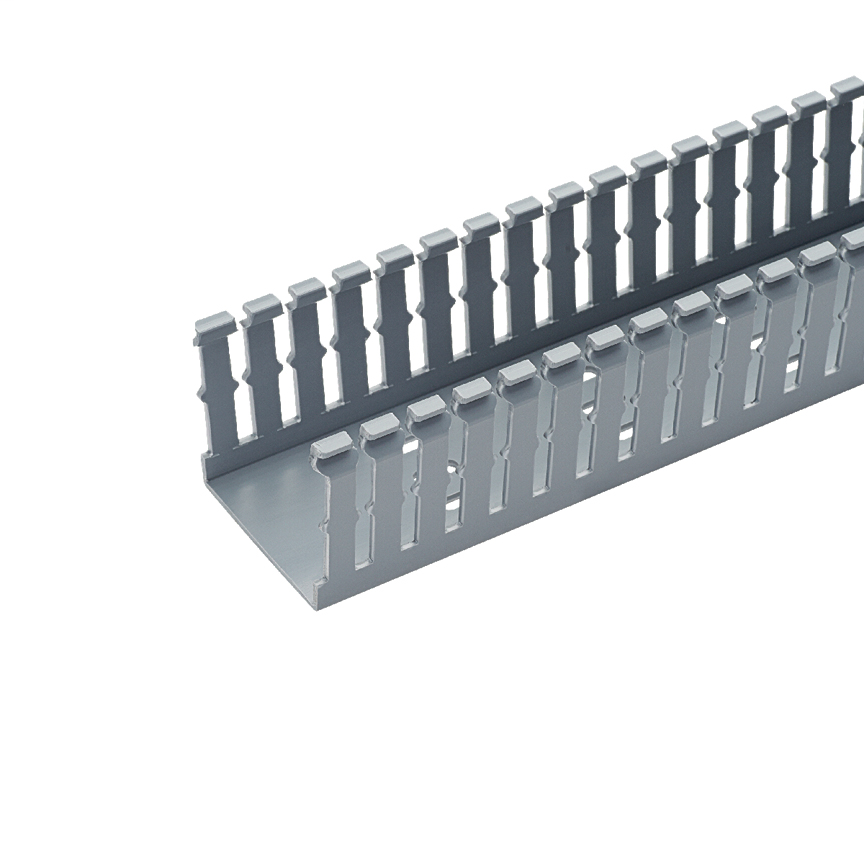

The PANDUIT F3X2LG6 is a lead-free PVC narrow slot wiring duct with a design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. It has mounting holes and a UL 94 flame class of V-0.
- Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
- Upper and lower scorelines allow for easy finger/sidewall section removal
- UL 94 flame class of V-0
Product Highlights
This wiring duct enhances cable organization and is ideal for efficient wire management in various settings.
Product Information
Standard Information
-
Brand: PANDUIT
-
Manufacturer Part Number: F3X2LG6
-
Country of Origin: US - United States
Technical Specifications
-
ECCN: EAR99
-
UNSPSC: 39131712
-
Brand: Panduit
-
Standard: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
-
Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
-
Connection Type: Standard Mounting Holes
-
Material: PVC
-
Type: Type F Narrow Slot
-
Color: Light Gray
-
Flammability Rating: UL94V-0
-
Color Family: Gray
-
Height: 2.12 in
-
Width: 3.25 in
-
Product Category: Wiring Duct & Accessories
-
Manufacturer: Panduit
-
Manufacturer Part Number: Panduit F3X2LG6
-
Mount Type: Mounting Holes
-
Slot Width: .2 in, 5.1 mm
-
Product Type: Narrow Slot Wiring Duct
