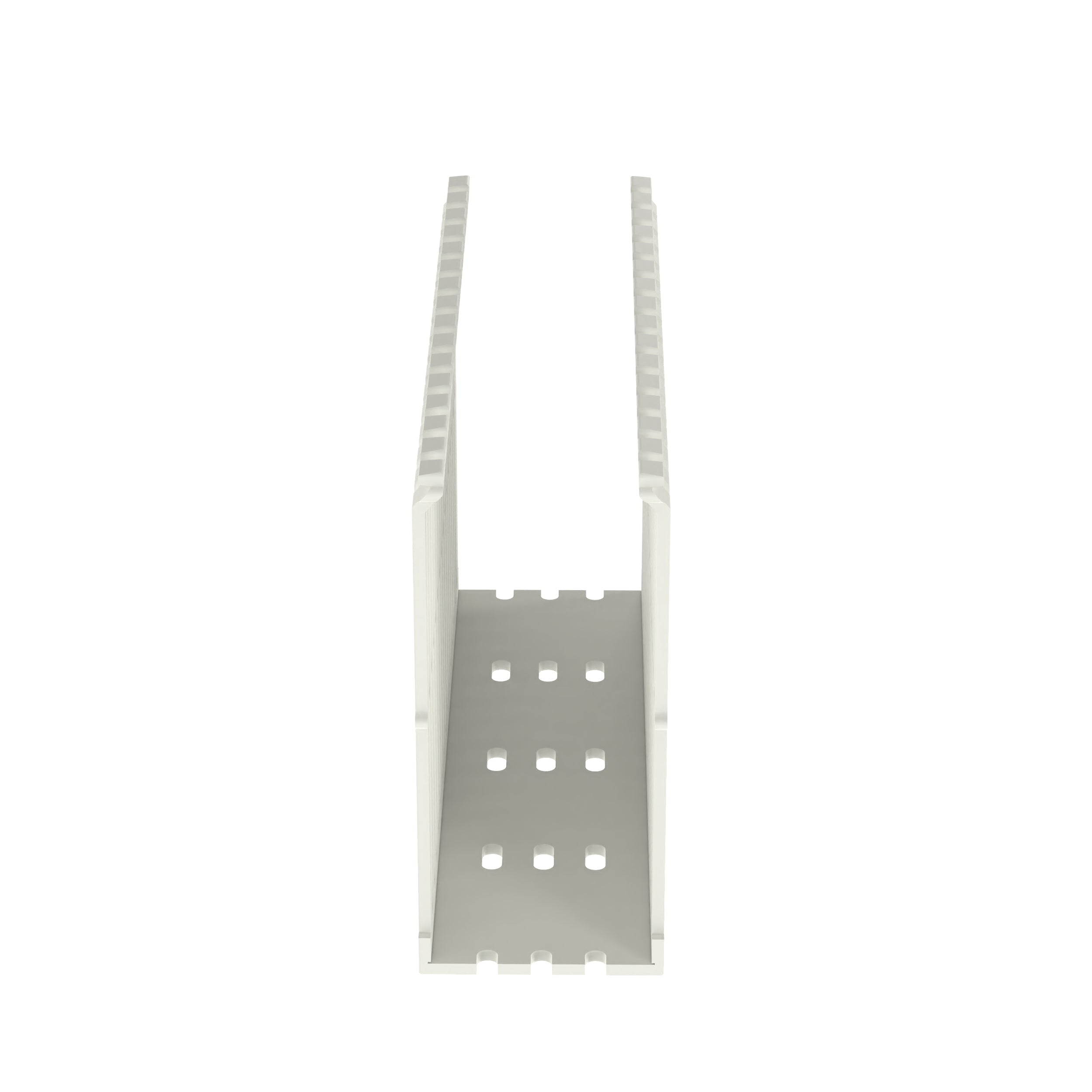

Panduit F2X5WH6 Narrow Slot Wiring Duct No Cover

Product Description

The Panduit F2X5WH6 Narrow Slot Wiring Duct is designed for efficient cable management. It is made from lead-free PVC and measures two inches by five inches in width and depth, with a length of six feet. The cover is sold separately. This product is ideal for high-density terminal block applications.

• Lead-free PVC construction
• UL recognized continuous use temperature of one hundred twenty-two degrees Fahrenheit
• UL94 flammability rating of V-0

Product Highlights

This wiring duct provides a narrow slot design that allows for optimal organization of cables and wiring in various setups.

Product Information

Standard Information

• Manufacturer: Panduit
• MPN: F2X5WH6

Technical Specifications

• Material: PVC
• Dimensions: 2 x 5 inches
• Length: 6 feet
• Temperature Rating: 122 degrees Fahrenheit (50 degrees Celsius)
• Flammability Rating: UL94 V-0
• Mounting Type: Hole
• Slot Pitch: 0.2 inches
• Application: High-density terminal block applications
