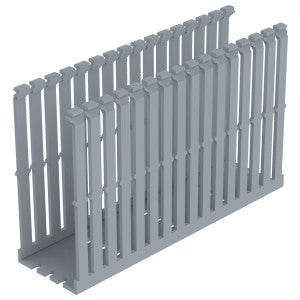

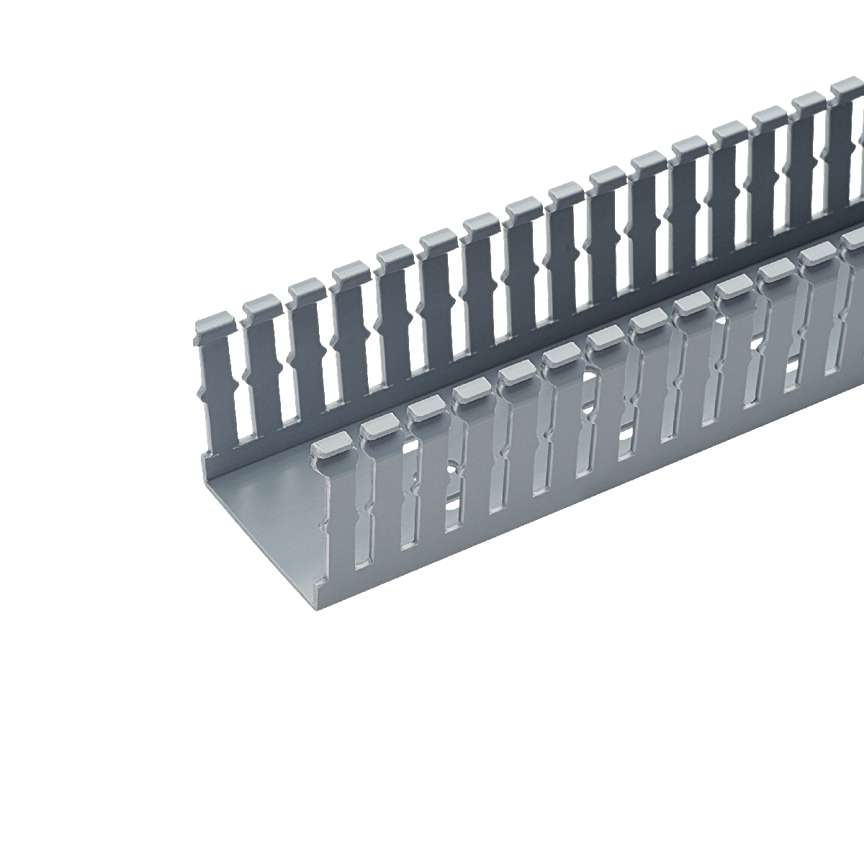

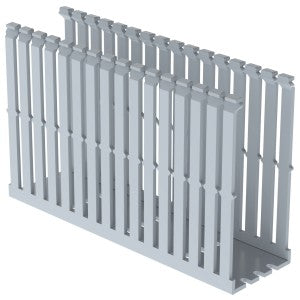

Panduit F2X5LG6 Panduct Type F Narrow Slot Wiring Duct 2 W x 5 H, 6 feet Length

Product Description

The PANDUIT F2X5LG6 Panduct® type F narrow slot wiring duct enhances cable management. Measuring 2 inches in width and 5 inches in height, this PVC duct spans 6 feet in length. Features mounting holes for easy installation and a slim slot width of .2 inches. RoHS compliant.

• Panduct® type F narrow slot wiring duct
• 2 W x 5 H, 6' length
• Lead-free PVC construction

Product Highlights

The F2X5LG6 wiring duct is ideal for organizing and protecting wires in various settings. Its narrow slot/finger design closely matches the spacing of high-density components.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F2X5LG6
• Country of Origin: US - United States

Technical Specifications

• Manufacturer: Panduit
• Manufacturer Part Number: Panduit F2X5LG6
• Mount Type: Mounting Holes
• Overall Width: 2.25 in, 57.2 mm
• Overall Height: 5.1 in
• Overall Length: 6 ft
• Material: Lead-Free PVC
• Slot Width: .2 in
• Product Type: Narrow Slot Wiring Duct
• Environmental Initiative: ROHS
• Compliant: Yes
• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39131712
• Brand: Panduct
• Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Connection Type: Standard Mounting Holes
• Type: Type F Narrow Slot
• Flammability Rating: UL94V-0
• Color Family: Gray
• Applications: Indoor
• Size: 2.00 x 5.00
• Slot Size: 5 mm
• Sub Brand: Panduct
• Depth: 2-1/4 Inch
• Length: 6 Foot
• Thickness: 0.12 IN
