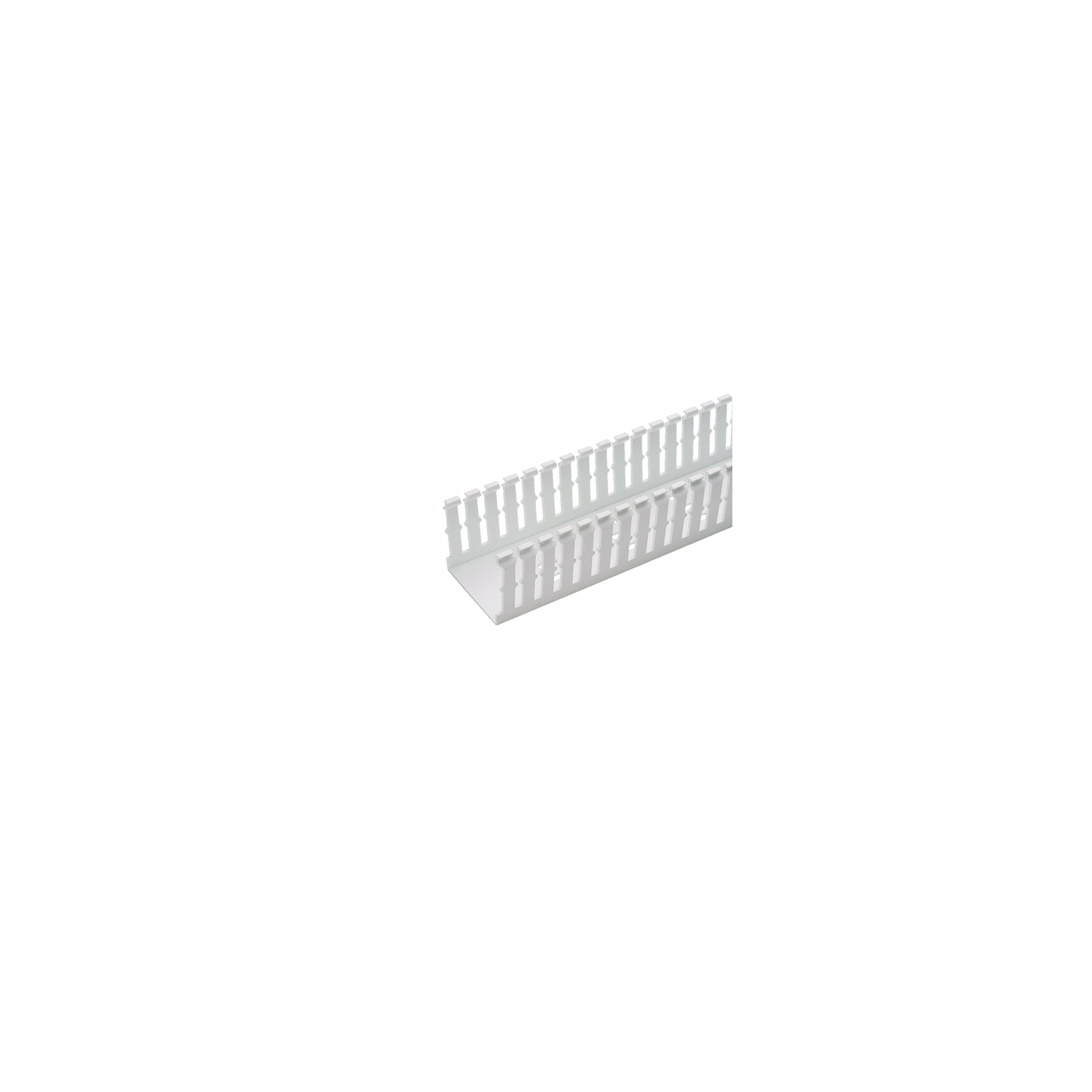

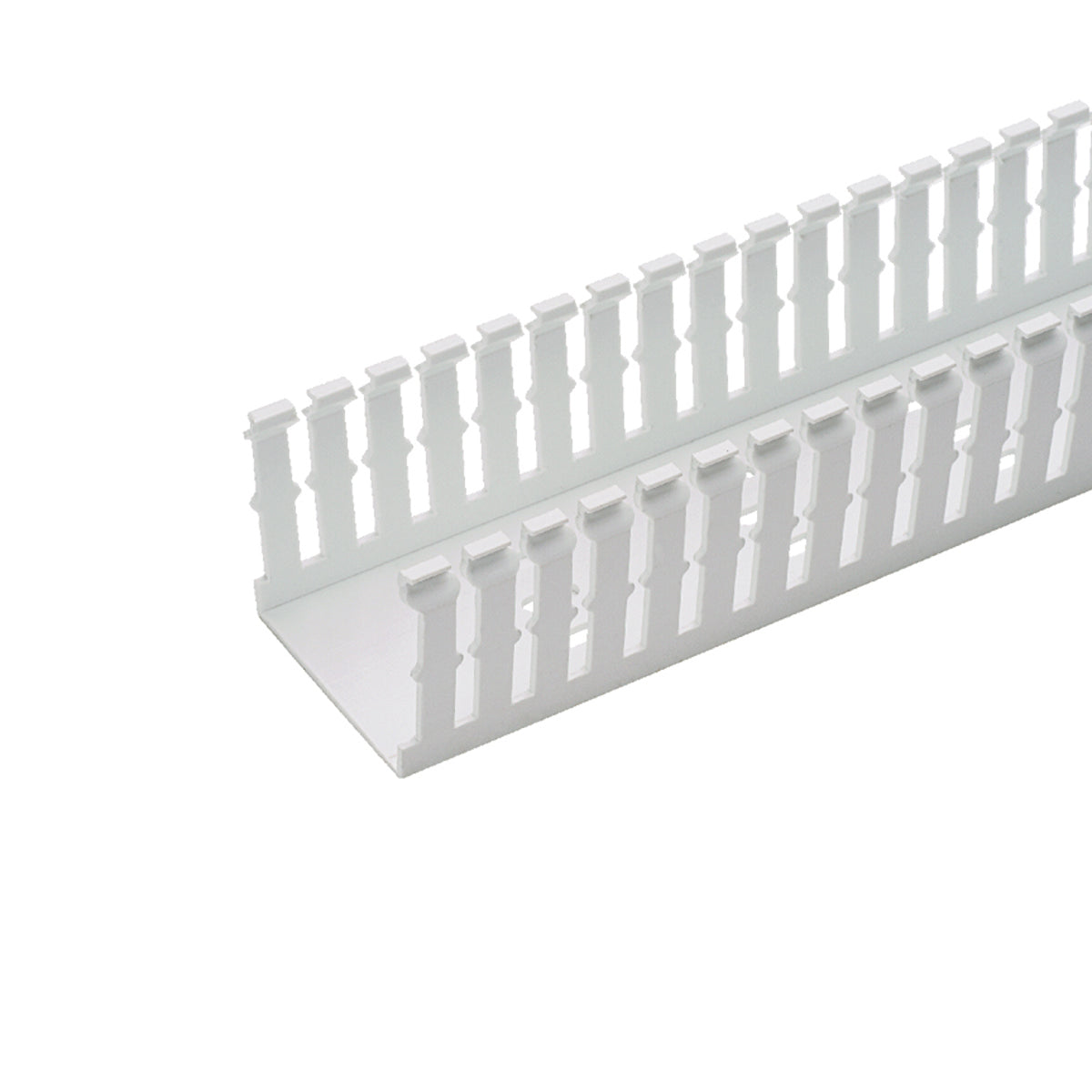

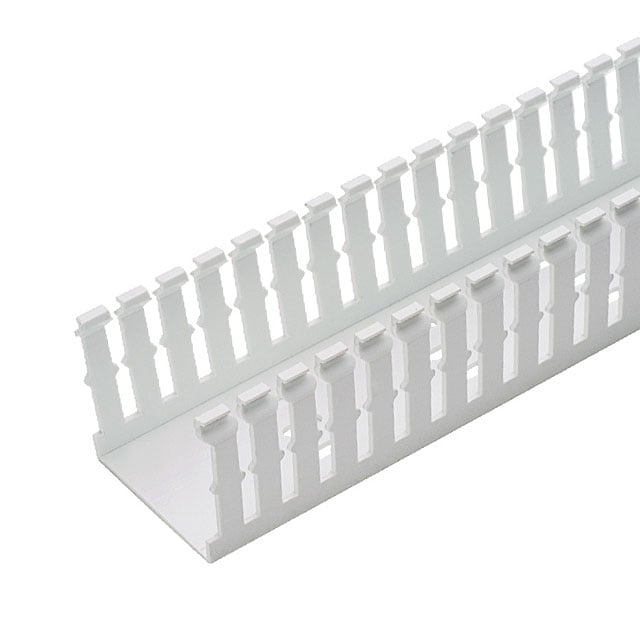

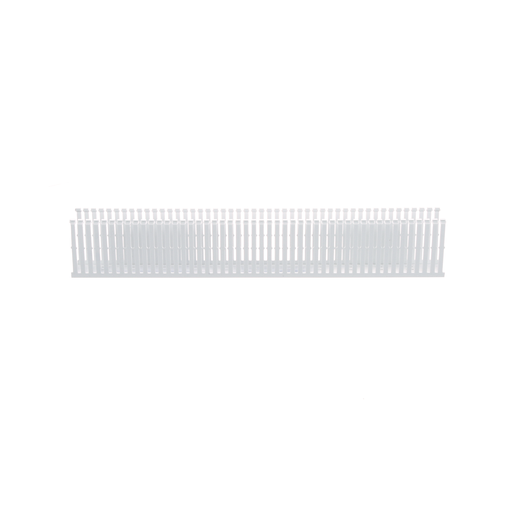

Panduit F2X4WH6 Narrow Slot Wiring Duct No Cover 2 x 4 x 6 ft

Product Description

Panduit F2X4WH6 is a Type F narrow-slot wiring duct made of lead-free PVC for wire routing and organization. The duct has an approximate cross-section of 4.1 in x 2.25 in (104.1 mm x 57.2 mm) and is 6 ft (1.83 m) long, with a 0.20 in (5 mm) slot width. It includes upper and lower scorelines for finger or sidewall removal, mounting holes for screw attachment, and meets UL 94 V-0 with continuous-use temperature up to 122°F (50°C). Cover sold separately.

• Lead-free PVC construction with UL 94 V-0 flammability rating and continuous-use temperature up to 122°F (50°C)
• Approx. cross-section 4.1 in x 2.25 in; length 6 ft (1.83 m); slot width 0.20 in (5 mm)
• Narrow slot/finger design for high-density terminal block spacing, with upper/lower scorelines and mounting holes

Product Highlights

Type F narrow-slot wiring duct, 4.1" x 2.25" cross-section, 6 ft length, UL94 V-0, lead-free PVC, cover sold separately

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F2X4WH6
• Country of Origin: United States

Technical Specifications

• Brand: Panduit
• Manufacturer Part Number (MPN): F2X4WH6
• Product Type: Narrow Slot Wiring Duct (Type F)
• Material: Lead-free PVC
• Cross-section (HxW): 4.1 in x 2.25 in (104.1 mm x 57.2 mm)
• Width: 2.25 in (57.2 mm)
• Height: 4.1 in (104.1 mm)
• Length: 6 ft (1.83 m)
• Slot Width: 0.20 in (5 mm)
• Slot Type: Narrow slot / slotted
• Wall Thickness: 0.10 in
• Mounting Type: Mounting holes / screw mount
• Cover Part Number: C2WH6
• Flammability Rating: UL 94 V-0
• Continuous Use Temperature: Up to 1220F (50
