Panduit F2X4LG6 Type F Narrow Slotted Wiring Duct 2 inches x 4 inches x 6ft

Product Description

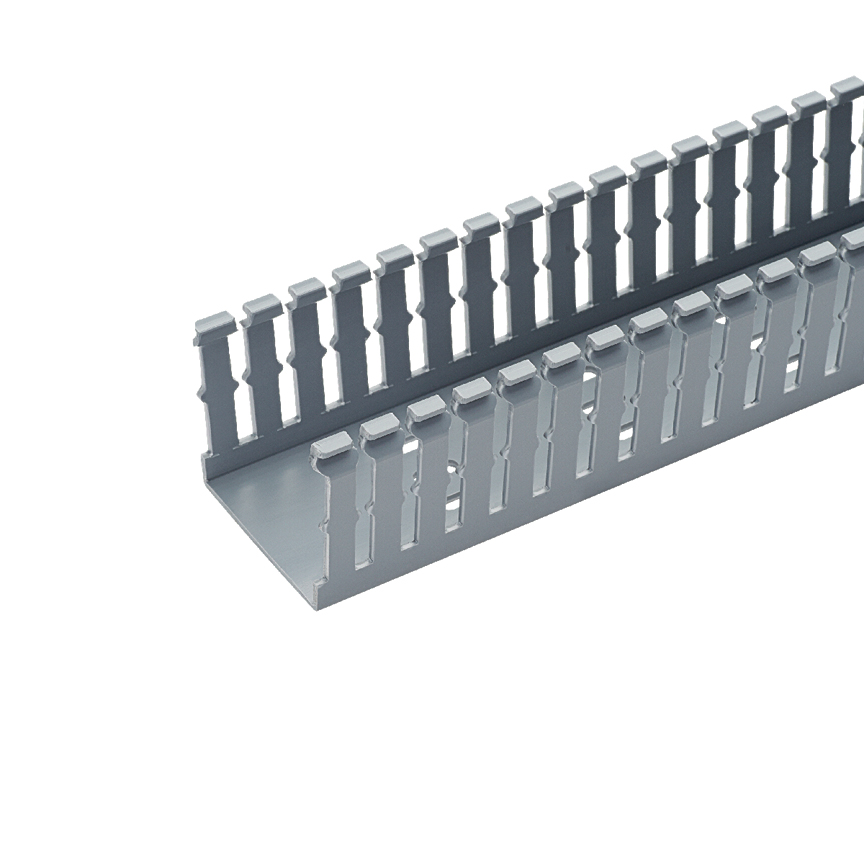

The Panduit F2X4LG6 Type F Narrow Finger Slotted Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. It has a UL 94 flame class of V-0 and mounting holes are provided.

• Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Upper and lower scorelines allow for easy finger/sidewall section removal
• UL 94 flame class of V-0

Product Highlights

The F2X4LG6 is RoHS Compliant, UL Recognized, and CE Compliant. Ideal for use with high-density terminal blocks and other hardware.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F2X4LG6
• Country of Origin: USA

Technical Specifications

• Applications: For Indoor use
• Material: PVC
• Mounting Type: Standard Mounting Hole
• Size: 57.2 x 104.1 mm
• Slot Size: 5 mm
• Type: Type F Narrow Slot
• Pkg Qty: 6
• Brand: Panduct
• Sub Brand: Panduct
• Color: Light Gray
• Depth: 4 Inch
• Height: 4.1 in.
• Length: 6 Foot
• Thickness: 0.11 IN
• Width: 2.25 in.
• Buy American Compliant: Y
• Country of Origin: USA
• Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
• ECCN: EAR99
• UNSPSC: 39131712
• Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Flammability Rating: UL94V-0
• Color Family: Gray
