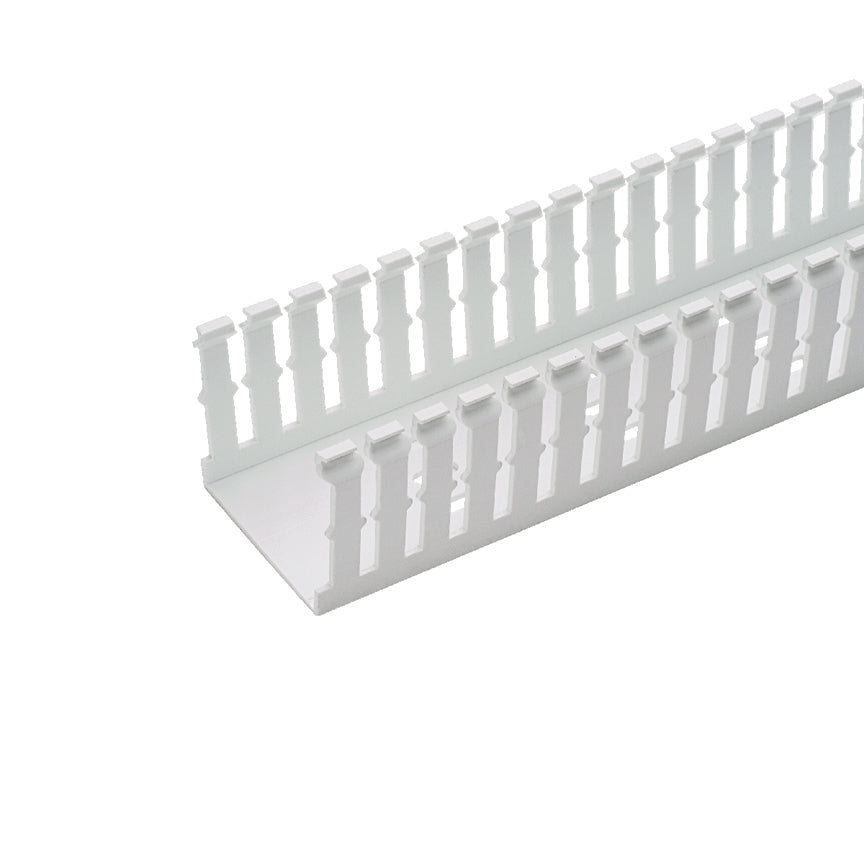

Panduit F2X3WH6 Narrow Slot Wiring Duct No Cover

Product Description

The Panduit F2X3WH6 Narrow Slot Wiring Duct is made of lead-free PVC, designed for effective cable management. It features a narrow slot or finger design that aligns with the spacing of high-density components. Easy removal of sidewall sections is facilitated by upper and lower scorelines. This duct has a UL 94 flame class of V-0, with a continuous-use temperature rating of up to one hundred twenty-two degrees Fahrenheit (fifty degrees Celsius). It includes provided mounting holes for installation. The dimensions of the duct are three point fourteen inches by two point twenty-five inches, and it is six feet long. Note that the cover is sold separately. This duct is primarily white in color.

• Lead-free PVC construction
• UL 94 flame class V-0
• Dimensions: 3.14 inches x 2.25 inches

Product Highlights

The narrow slot design allows more slots for high-density component spacing.

Product Information

Standard Information

• Manufacturer: Panduit
• MPN: F2X3WH6

Technical Specifications

• Material: Lead-free PVC
• Continuous Use Temperature: 122°F (50°C)
• Flammability Rating: UL 94 V-0
• Dimensions: 3.14 inches x 2.25 inches
• Length: 6 feet
• Mounting Holes: Yes
• Color: White
• Slot Width: 0.2 inches
