Panduit F2X3WH6-A Narrow Slotted Wiring Duct 2 inches x 3 inches x 6ft

Product Description

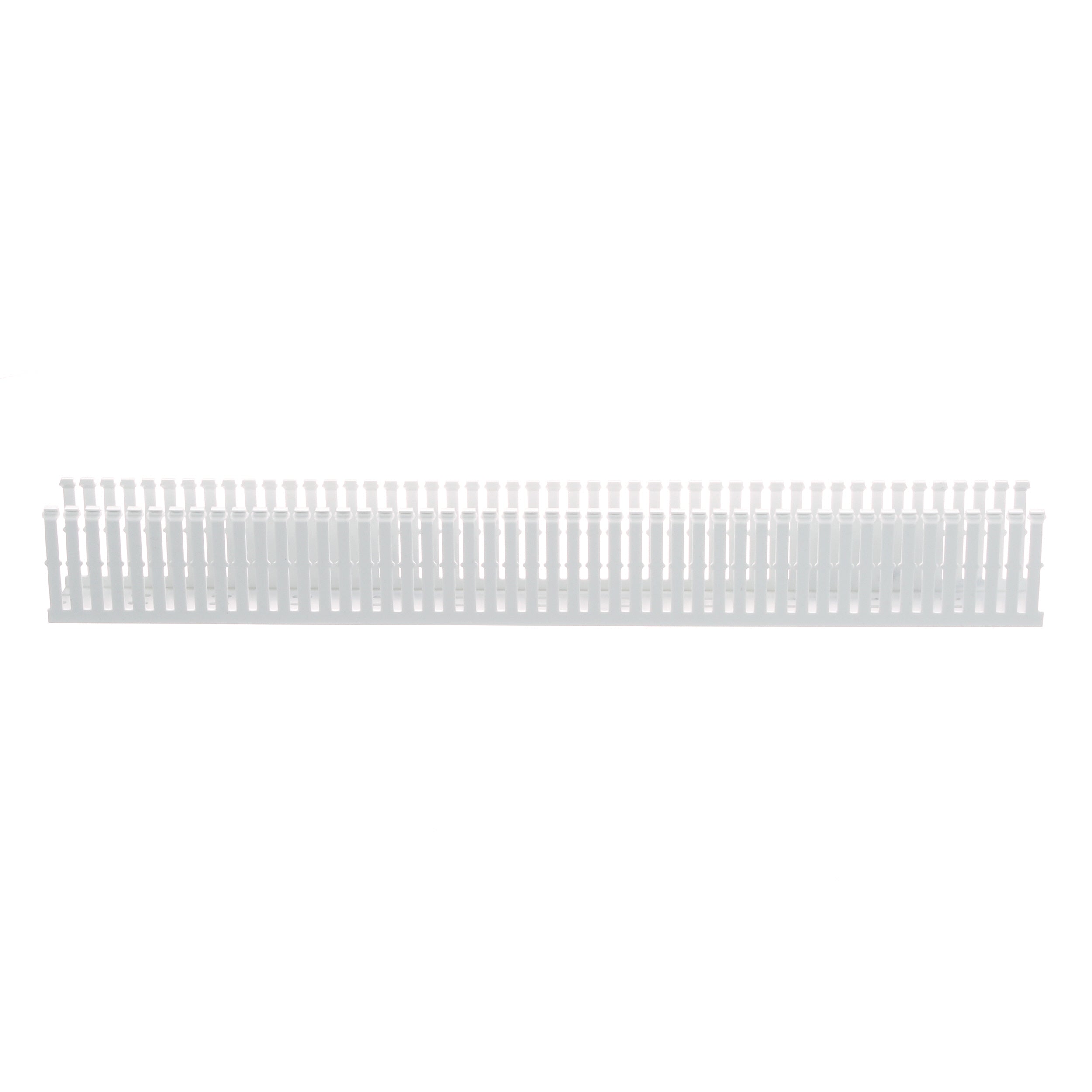

The Panduit F2X3WH6-A is a narrow slotted wiring duct made of PVC with dimensions of 2" x 3" x 6ft. It features a narrow slot/finger design for high-density terminal blocks and hardware. This wiring duct is suitable for general purpose control panel wiring in communication closets. It is also designed for indoor use.

• Narrow slotted duct design
• Adhesive backing for easy installation
• 2" width x 3" height dimensions

Product Highlights

The Panduit F2X3WH6-A wiring duct is constructed from lead-free PVC and conforms to NFPA 79-2007 section 13.3.1 for flame retardant material. It also features smooth corners and edges.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F2X3WH6-A
• Country of Origin: USA

Technical Specifications

• Applications: For Indoor use
• Material: PVC
• Mounting Type: Adhesive, Screw
• Size: 57.2 x 79.2 mm
• Slot Size: 5 mm
• TC Connection: Standard Mounting Holes
• Type: Type F, Bottom Perforated
• Brand: PANDUIT
• Sub Brand: Panduct
• Color: White
• Depth: 3 Inch
• Height: 3.14 Inch
• Length: 6 Foot
• Overall Length: 6 ft
• Thickness: 0.1 IN
• Width: 2 in
• Buy American Compliant: Y
• Country of Origin: USA
• Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
• Manufacturer: PANDUIT CORP
• Manufacturer Part Number: F2X3WH6-A
• Packaged Quantity: 6
• Product Line: Panduct
• Product Name: Panduct Duct
• Product Type: Cable Routing
• Environmentally Friendly: Yes
• UNSPSC Code: 26120000
• Application: For general purpose control panel wiring in communication closets
• Primary Type: Wiring Duct
• Protection Class: Duct, Wiring
• Quantity: 1
• Series: Panduct PanelMax Series
• Special Features: Adhesive Backed, Flame Retardant, Narrow Slot
