Panduit F2X3IB6 Wire Duct Slotted Screw 6 feet Replacement F2X3IB

Product Description

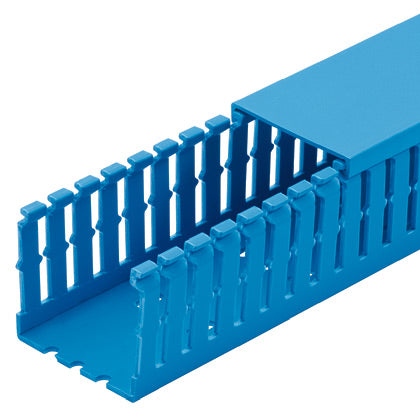

The PANDUIT F2X3IB6 wire duct is a blue slotted (raceway) base screw, 6.00' (1.83m) in length. Designed with a narrow slot/finger to fit the spacing of high-density terminal blocks and other hardware. Features upper and lower scorelines for easy finger and sidewall section removals. The double restricted slot design retains wires, saving time.

• Narrow slot/finger design provides more slots to fit the spacing of high-density terminal blocks and other hardware
• Smooth corners and edges that will not abrade wiring or irritate hands
• Integrated nonskid liners and unique cover designs insure the duct cover will not slide once installed or during vibration

Product Highlights

The F2X3IB6 wire duct is ideal for space-restricted applications or low budget wire panel schemes. Constructed from lead-free PVC material and conforms with NFPA 79-2007 section 13.3.1 requirement for flame retardant material.

Product Information

Standard Information

• Brand: PANDUIT
• Manufacturer Part Number: F2X3IB6
• Country of Origin: USA

Technical Specifications

• Category: Cables, Wires - Management
• Wire Ducts, Raceways: Wire Ducts, Raceways
• Length: 6.00' (1.83m)
• Manufacturer: Panduit Corp
• Width: 2.250" (57.15mm)
• Series: PANDUCT Type F
• Mounting Type: Screw
• Packaging: Bulk
• Material: Poly-Vinyl Chloride (PVC)
• Part Status: Active
• Wire Duct Type: Slotted (Raceway), Base
• Base Product Number: F2X3IB
• Height: 3.010" (76.45mm)
• Application: Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
• Brand: PANDUIT
• Flammability Rating: UL94 V-0
• Includes: Base Only
• Manufacturer Part Number: F2X3IB6
• Primary Type: Wiring Duct
• Size: 2.25 in
• Type: 0.2 Inch Width Slotted, Narrow Finger
• Finish: Intrinsic Blue
• UNSPSC: 39131712
• Approval: UL, CSA, CE
• Mounting: 0.2 Inch x 0.5 Inch Slot
